SCP600 installation onto MRS

It is recommended that the stylus changing port units (SCP600) are attached to the modular rack system rail (MRS) using the following procedure where it is assumed that the MRS system is correctly installed. For full details, please refer to the MRS modular rack system installation and user’s guide (H-1000-5088):

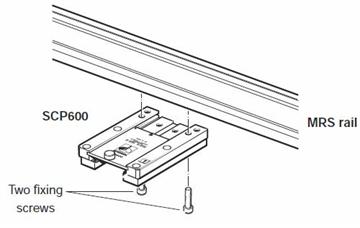

Fitting SCP600 to MRS

  1. Insert one of the fixing screws through the SCP600.
  2. Offer up the SCP600 to the MRS rail, positioning the fi xing screw to the respective ‘T’ bolt within the rail. Finger-tighten the screw.
  3. Insert the other fi xing screw through the SCP600 port.
  4. Position the SCP600 so that the second screw locates into the respective ‘T’ bolt in the rail. Finger-tighten the screw.
  5. Using the hexagonal key supplied, hand-tighten the two fixing screws into the ‘T’ bolts.
