Airfoil analysis

MODUS™ airfoil analysis

With the nominal airfoil sections available from the CAD model and the actual sections from MPCS, it is now possible to report profile and airfoil characteristics.

Blade profile analysis

Profile evaluation

MODUS incorporates comprehensive profile evaluation and graphical reporting tools. The profile measurement results are totally integrated with all other feature measurement reports and can be produced in PDF format.

Aerofoil evaluation

Airfoil evaluation

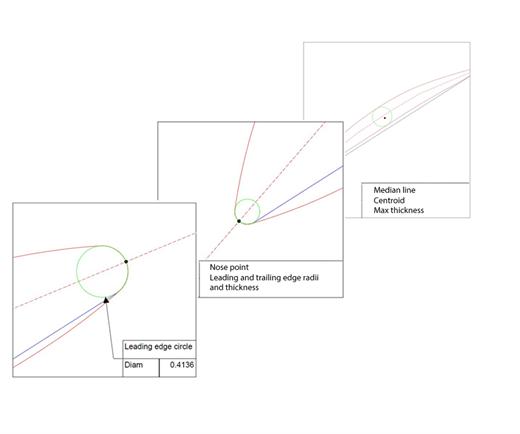

MODUS provides comprehensive aerofoil evaluation functionality with graphical reporting tools. Characteristics that can be analysed include:

  • Maximum thickness
  • Leading and trailing edge radii, angles and thicknesses
  • Twist angles
  • Chordal distances
  • Centroids
