Adjustment modules

Both modules enable adjustment in pitch, roll and yaw and allow accurate alignment with machine quill or workpiece.

AM1 adjustment module

The AM1 adjustment module shown below is designed for use on the PH10T PLUS and PH10M PLUS. It has a quick release mechanism allowing for rapid head exchange and features inbuilt overtravel protection. For further information on the AM1, please refer to the AM1 user's guide (part number H-1000-4010).

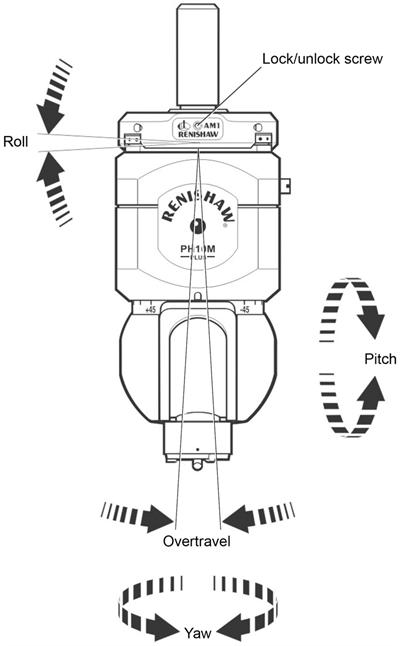

PH10M fitted with AM1








AM2 adjustment module

The AM2 adjustment module shown below is designed for use with the PH10MQ PLUS. For further information on the AM2, please refer to the AM2 product information sheet (part number H-1000-2051).

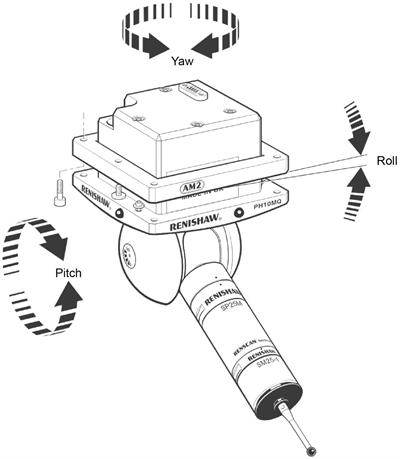

PH10MQ fitted with AM2
