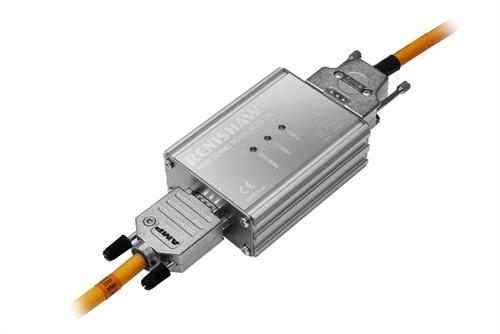

| Head comms signal boosterHead comms signal booster (HCSB) The head comms signal booster has been designed for installations of PH20 and REVO-2 where cable runs of greater than 25 m are required – one HCSB is required for each additional run of 25 m- The HCSB is powered from the machine cable so does not require an additional power supply – it simply connects between two machine cables
- Functionally, the HCSB passes the power and motor connection for the probe head straight through and decodes and retransmits the information
NOTE: The HCSB is only compatible with PH20 and REVO-2. High speed communications cable- The high speed communications cable provides a single, high quality connection for the purpose of carrying the high data rates required by 5-axis systems
- To provide greater integrity communications, the maximum recommended cable lengths are:
- PH20 and REVO-2 installations - 25 m
| | Part number |
|---|
| Head comms signal booster (HCSB) | A-5669-0080 | | High-speed communications cable (15 m) | A-5669-0015 | High-speed communications cable (25 m) | A-5759-0025 | | High-speed communications cable (30 m) - REVO ONLY | A-5669-0030 |
|
