IS1-2

IS1-2 interface selector

  • IS1-2 interface selector Automatic switch for use with multiple sensor types
  • Identifies probe type and switches output to correct interface
  • 4 separate channel outputs
  • Compatible with SP25M, SP80, SP600, TP7M, TP2*, TP6*, TP20* and TP200
  • Compatible with ACR1 and ACR3 autochange systems, PH10M PLUS / PH10MQ PLUS motorised heads and PICS

 * Do not require a programming module

Technical specification

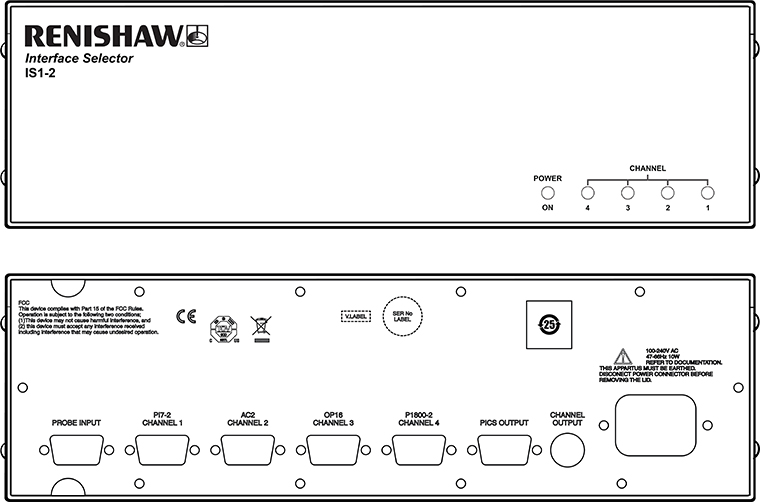

IS1-2 front and rear panels



Installation and user's guides

  • Installation guide: IS1-2

    This guide describes how the IS1-2 (interface selector) functions when used with multiple Renishaw probing systems. It gives information on physical installation, system connections and interface settings, as well as assistance in fault finding during the installation of a system.

    [987kB]

Probe interface selectors

Ident resistor

Part number

IS1-2 probe interface selector (supplied with TP7, SP600 and OTP6 modules fitted and SP25M module supplied loose)

A-1327-0100

TP7 module

2k Ω

A-1327-0550

SP600 module

2k7 Ω

A-1327-0620

OTP6 module

3k7 Ω

A-1327-0630

SP25 module

9k375 Ω

A-1327-0650

SP80 module

30k Ω

A-1327-0680
