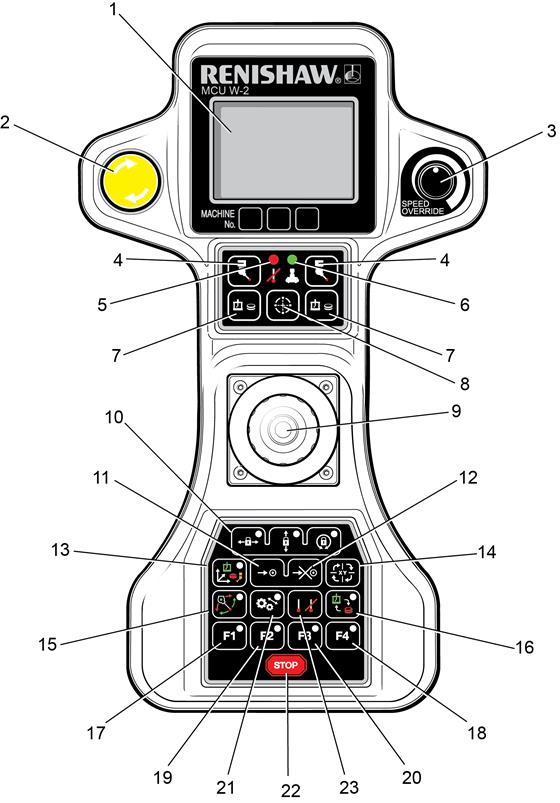

MCU W-2 features

Key

Description

1

LCD screen

2

Stop switch

3

Speed override

4

Joystick enabled head mode (see '6' and '15')

5

Probe disabled LED

6

Joystick enabled LED

7

Joystick control of CMM or rotary table (see '6' and '16')

8

Bore teach

9

3-axis joystick with push button

10

Joystick locks (three separate buttons)

11

Take point

12

Cancel point

13

Joystick co-ordinate system (axis select)

14

Joystick orientation

15

Switch between orbital mode and head mode

16

CMM movement or rotary table

17

F1 function

18

F4 function

19

F2 function

20

F3 function

21

Engage servos

22

Stop

23

Probe disabled (see ‘5')

MCU W-2 visual guide
