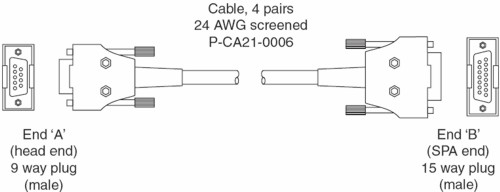

 | REVO SPA cable wiring instructions| Pin number End ‘A’ | Colour | Signal name | Pin number End ‘B’ |
|---|
4 | Red twisted with black - pin no. 9 | D0 | 7 | 9 | Black - twisted with red - pin no. 4 | D1 | 15 | 5 | White - twisted with black | D2 | 8 | - | Black - twisted with white - pin no. 5 | Not connected | - | 7 | Green - twisted with black - pin no. 3 | E0 | 4 | 3 | Black - twisted with green - pin no. 7 | E1 | 12 | 8 | Blue - twisted with black | E2 | 5 | - | Black - twisted with blue - pin no. 8 | Not connected | - | 1 | | Not connected | - | 2 | | Not connected | - | 6 | | Not connected | - | - | | Not connected | 1 | - | | Not connected | 2 | - | | Not connected | 3 | - | | Not connected | 6 | - | | Not connected | 9 | - | | Not connected | 10 | - | | Not connected | 11 | - | | Not connected | 13 | - | | Not connected | 14 | Shell | Cable shield | - | Shell |
|
