SCR600 stylus change rack

SCR600 stylus change rack

  • SP600M/SCR600A passive stylus change rack for use with the SP600 probe family
  • No electrical connections required
  • Overtravel protection in the probe entry direction by a mechanism in the base which can be manually reset
  • Holds up to four SH600 stylus holders per rack
  • Any number of racks can be used in a system

Technical specification

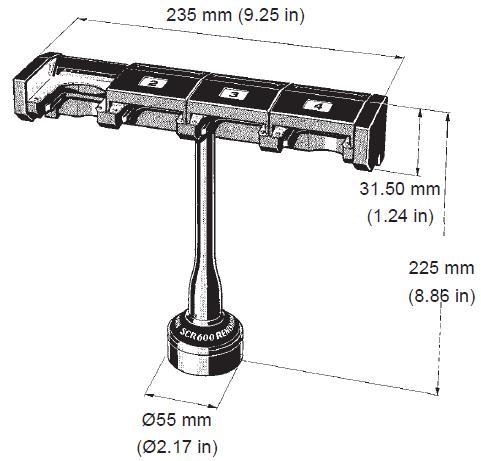

Dimensions

SCR600 stylus change rack

Installation and user's guides

  • Installation and integration guide: SP600, SCR600 and AC1, AC2

    SP600M is an auto-jointed, multiwired analogue scanning probe suitable for mounting on certain motorised and fixed Renishaw probe heads. SP600Q is a quill mounted version of the SP600M analogue scanning probe. SP600 is a shank mounted version of the SP600M analogue scanning probe.

    [938kB]
 Part number
SP600 kits
SP600 shank mounted scanning probe kitA-2098-0722
SP600M autojointed / multiwired scanning probe kitA-2098-0105
SP600Q quill mounted scanning probe kitA-2098-0890
SP600 stylus changing accessories
SCR600 stylus change rack for use with SP600M and SP600QA-2098-0255
SCP600 stylus change port to be mounted on MRS / MRS2 for use with SP600M and SP600QA-2098-0933
SH600-STD stylus holder for use with SP600M and SP600QA-2098-0284
SH600-EXT stylus holder for use with new SP600M and SP600Q's allows styli of up to 300 mm long to be usedA-2098-1036
SP600 interfaces and accessories
AC2 interface card for use with SP600M and SP600QA-2172-0001
PL112 PICS adaptor cableA-2172-0004
PL113 overtravel adaptor cableA-2172-0005
