SP80 and SP80H

SP80 and SP80H quill-mounted scanning probes

  • SP80 scanning probeUltra-high accuracy measurement, provided by digital scale and readheads - system resolution of 0.02 µm (79 µin)
  • Long stylus carrying capability for access to deep features -
    up to 1000 mm (39.4 in) and 500 g (17.64 oz) mass on SP80
  • Unbalanced stylus configurations do not require
    counterbalancing
  • SP80H variant mounts to horizontal quill - styli up to 500 mm
    (7.87 in) long and 500 g (17.64 oz) mass
  • Isolated optical metrology for direct accurate measurement of stylus deflection
  • Low inertia mechanism for excellent dynamic response
  • Passive scanning probe with no motors, giving improved thermal stability and reliability
  • Bump-stop crash protection in the Z axis, together with a detachable stylus holder for XY crash protection
  • Adaptor plates enable rapid interchange between SP80 and PH10MQ PLUS motorised head
  • Kinematic stylus changing for repeatable relocation of the optimum stylus configuration - removes the need for requalification

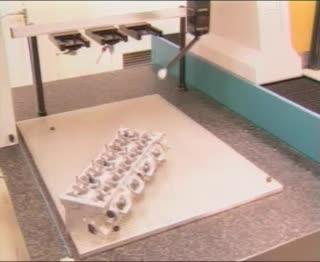

Video: SP80 deep bore measurement



Stylus holders

SH80
SH80 docking arrangements
SH80 markings
  • A detachable stylus holder located onto the probe body using a repeatable magnetic kinematic joint
  • Provides rapid and automatic interchange between stylus configurations thus enabling optimisation of measuring solutions to suit the application whilst maintaining system accuracy
  • Incorporates a 5-way cube for attachment of M5 styli
  • The stylus mount cube may be rotated by loosening a grub screw to enable correct rotational positioning of the stylus arrangement
  • Automatically removed and replaced on the probe body by using a SCP80 / V mounted on an MRS or suitable extrusion
  • Can dock into an SCP80 port aligned with any of the four sides of the SP80 probe meaning that the SCP80 / V can be positioned to the rear, front, left or right of the CMM, or any combination of these
SH80K

 SH80K

  • Supplied as a standard item with each probe
  • A stylus holder with a kinematic location ball that allows the SP80 and SP80H to be powered off / on without needing to rehome the probe (needs the SH80K to be fitted before the power is switched off)
  • The stylus ball locates on a special kinematic screw that is fitted to the probe body
  • It is possible to use SH80K with earlier versions of SP80 as the kinematic screw can be retrofitted to the probe body

SP80 stylus change racks and accessories

SCP80 stylus change port

  • Docking port for SH80 stylus holder - mounted on modular rack system (MRS)
  • The SCP80 has a spring loaded mechanism that is designed to ease the stylus holders away from the probe body
  • The SP80 pull-off force is less than 20 N
Modular rack system (MRS2)
  • A versatile probe and stylus changing solution for a wide range of Renishaw sensors
  • Available in a variety of leg and rail lengths to allow it to be configured to various applications
  • Additional rails can be added to MRS2 to create multi-tier racks in instances where CMM working volume is at a premium or there is a need to carry large numbers of probes and styli

SCP80V stylus change port

  • Docking port for SH80 stylus holder for use in the vertical orientation
  • Designed to be mounted onto an extrusion based rack provided by the CMM builder
  • Same spring loaded mechanism to ease the SH80 away from the probe body, but due to the different mounting orientation a higher spring force is required
  • The higher spring force means that SCP80V can also be fitted to the MRS system alongside the SCP80 to hold SH80s that have styli configurations requiring the stylus to point through the back of the rack port

Stylus holder removal tool

  • A removal tool for manually removing the SH80K and SH80 from either the SP80 and SP80H

SP80 interfaces

CC6 counter card

  • A PCI counter card which accepts RS422 scale output (typically from the Renishaw IU80 interpolator unit) and determines the {x,y,z} deflection of the SP80 probe
  • Data is then integrated with the machine position to determine the surface location
  • Suitable for PCs equipped with full size PCI expansion slots

IU80 interpolator unit

  • A boxed interface unit designed to condition the SP80 probe outputs into the industry-standard EIA RS422 quadrature scale output format
  • Signals can then be readily accepted by CMM controllers
  • Can be used with the Renishaw CC6 counter card, or with counter circuitry designed by the machine builder

SP80 UCC daughtercard

  • A plug-in card for the UCC that operates the SP80 scanning probe
OEM design
  • A counter card and interpolator unit designed by the machine builder

SP80 quill connection options (suitable for both SP80 and SP80H)

KM80 quill mount plate

  • A simple, repeatable attachment between the SP80 scanning probe and the CMM quill
  • Attached to the quill using four bolts and is designed to suit M4 or M3 quill attachment screws
KM6080 quill mount adaptor plate
  • Enables the SP80 to be adapted to suit CMMs with 60 mm square quills
  • Not available as a standard product and must be quoted through Renishaw's Custom Design Service
SM80 shank mount
  • As KM80 but with a shank mount to the CMM (non-preferred method)
  • SM80 shank mounts are not available as standard products and must be quoted through Renishaw's Custom Design Service

PHA3 and PHA80

  • Adaptor plates for rapid interchange between PH10MQ PLUS (using PHA3) and SP80 (using PHA80) on the same CMM

Cables

  • Interconnection cables integrating the SP80 and SP80H scanning probe to a CMM
PL numberLengthConnector 1Connector 2Cable type
PL1570.23 mIn-line LEMO plug26-pin high-density 'D' type socketStraight
PL1560.6 mNot terminated26-pin high-density 'D' type socketStraight
PL1581 m26-pin high density 'D' type plug26-pin high-density 'D' type plugStraight

SP80 probe kit

SP80 probe kit
KeyDescription
1KM80 kinematic quill mount
2SP80 probe body
3

SH80 stylus holder

4

SH80K stylus holder

5

Stylus holder removal tool

Isolated optical metrology system

SP80
  • Readheads for each axis are fitted to the body of the probe
  • Light is reflected from the moving cube onto the readhead
  • System measures deflection of the whole mechanism
  • Detects sources of variable error such as thermal and dynamic effects
  • Any inter-axis error caused by arc motion of parallel acting springs is directly measured by the sensor system
  • System has no moving wire connections

† Probes with displacement sensors mounted to stacked axes suffer from latency under changing inertial loads and cannot detect thermal growth in their mechanisms.



Dimensions are shown in mm

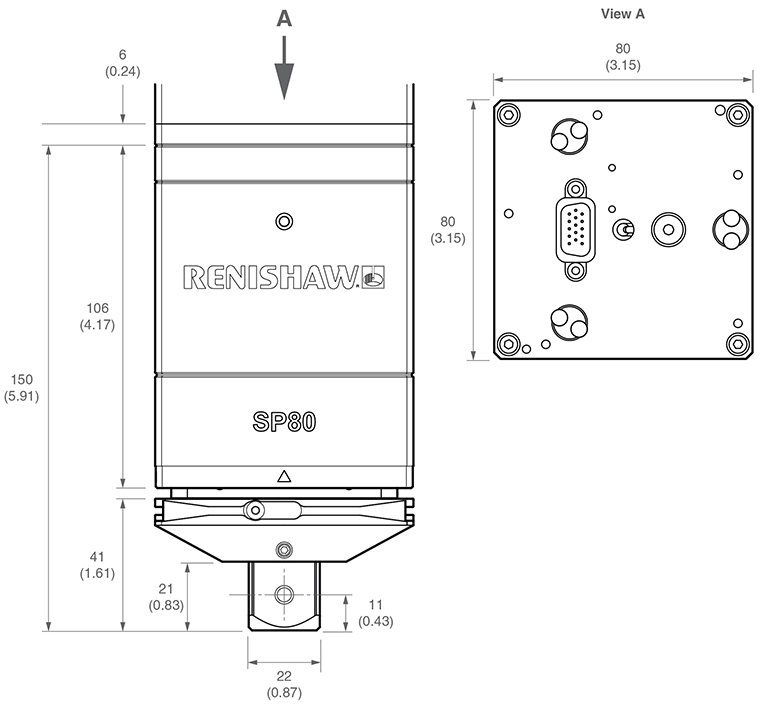

SP80 with SH80SP80 with SH80 dimensions

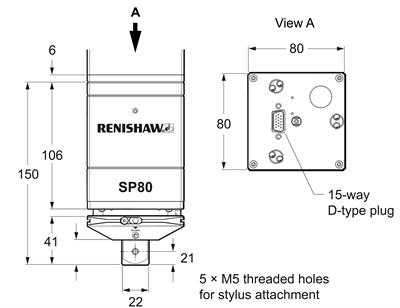

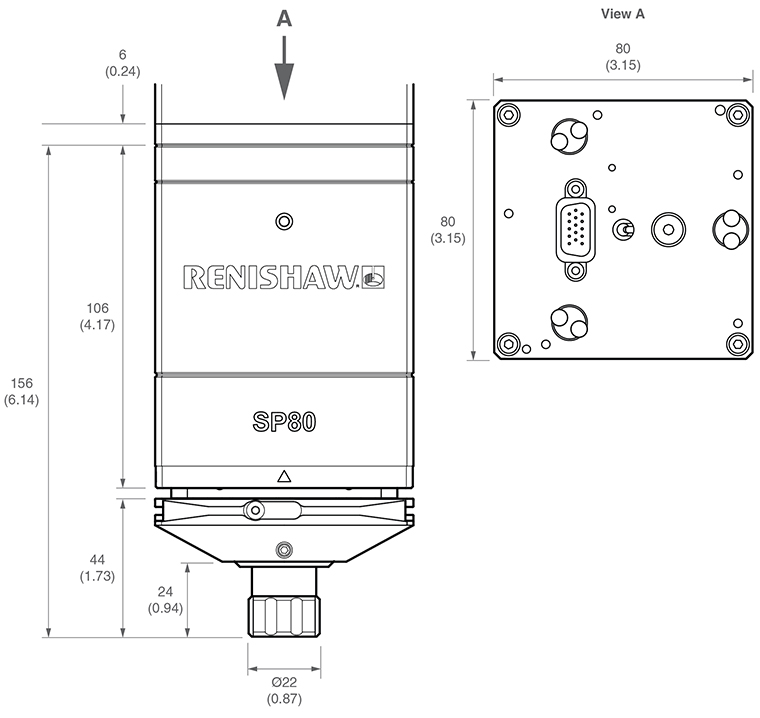

SP80 with SH80K SP80 with SH80K dimensions

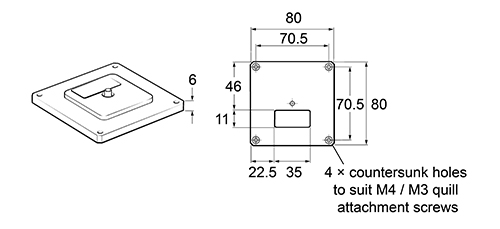

KM80 KM80 system dimensions
SCP80 / SCP80V SCP80 and SCP80V dimensions

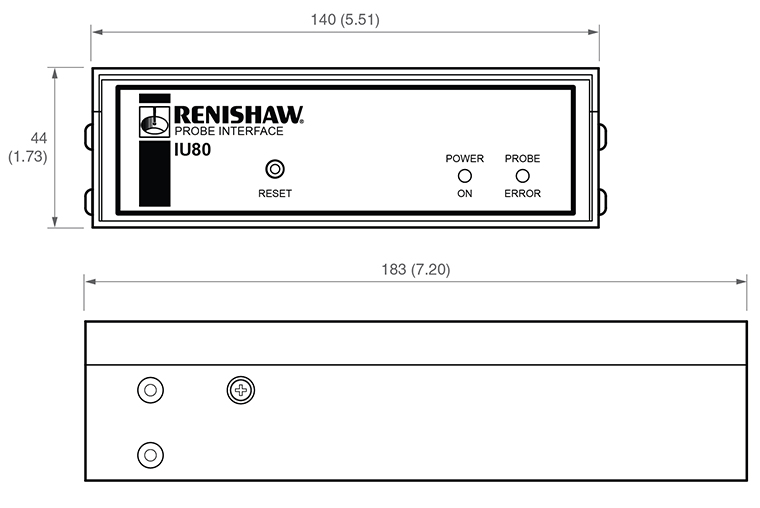

IU80 IU80 dimensions

SP80 probe system specification

The probe orientation shown below is the orientation used in the SP80 probe product specification.

SP80 orientation
Probe attributesUltra-high accuracy scanning probe with three axis measurement (±PX, ±PY, ±PZ) *
OrientationVertical
Size80 mm × 80 mm (3.15 in × 3.15 in) body, 150 mm (5.91 in) long including SH80 stylus holder
Quill mounting

KM80 - 80 mm × 80 mm quill to kinematic SP80 quill mount (standard)

KM6080 - 60 mm × 60 mm quill to 80 mm × 80 mm kinematic SP80 probe mount (option)

SM80 - shank mount and other custom made adaptor plates available - contact your Renishaw supplier for details

Measurement range3-axis measurement: ±2.5 mm (±0.12 in) (PX, PY, PZ)*
Overtravel rangePX* and PY* protected by breakout of the kinematic joint to the SH80
PZ* has a mechanical 'bump-stop'
Resolution of digital scales0.02 μm
Measurement capability test to ISO10360-2 **Typically <1.0 μm with a 50 mm stylus
Scanning capability test to ISO10360-4 **Typically <1.5 μm MPETHN with a 50 mm stylus
Time for typical scan = 74 s
Return to zeroApproximately 1% of working deflection
Spring rateApproximately 1.8 N/mm (X, Y, Z)
Stylus carrying capability

Renishaw M5 stylus range

Maximum 500 g mass (unbalanced)

Maximum 1000 mm projection #

Mass

SP80 probe body only: 860 g

SH80 stylus holder: 185 g

KM80 quill mount: 110 g

Pull off force of SH80<20 N when using SCP80 - otherwise approximately 80 N
Probe power supply+9 V to +18 V @ 300 mA maximum dc
System power supply (including IU80)+5 V ±0.25 V @ 1 A maximum dc
SP80 probe outputs (PX, PY, PZ) *1.5 V ±0.25 V p-p. analogue quadrature signal (nominal 2.5 V zero crossing reference)
Interfacing options
  • Using a UCC2-2 SP80 daughtercard for direct integration
  • Using a Renishaw PCI counter card (CC6) and the Renishaw interpolator unit (IU80)
  • Other interface card designed by the OEM and used in conjunction with an IU80
  • Using a counter card and interpolator units designed by the OEM
Change rack system

SCP80 units mounted to MRS / MRS2

SCP80V units mounted to MRS / MRS2 for rear facing styli

* Where P specifies that it is the probe axis rather than the machine
** Tested on a CMM with specification of 0.48 μm +L/1000 with touch and scanning deflections ≤ 0.5 mm

# Longer stylus lengths may be carried subject to operating conditions - consult Renishaw for application assistance

SP80H specification

Stylus carrying capability

Due to the different orientation of the kinematics problems can occur when trying to support heavy styli on SP80H. Failure to reseat properly after the kinematics have been reseated may be observed with styli that have a moment at the stylus root greater than 200 g at 200 mm.

A graph representing a safe working moment range is shown below; this is based upon stylus weight and centre of gravity (COG) distance from the stylus root. It is advised that where possible customers should try and use styli configurations for SP80H that fall within these guidelines.

SP80H stylus carrying capability

SP80H probe specification

The probe orientation shown below is the orientation used in the SP80H probe product specification.

SP80H orientation
Probe attributesUltra-high accuracy scanning probe with three axis measurement (±PX, ±PY, ±PZ) *
OrientationHorizontal
Size80 mm × 80 mm (3.15 in × 3.15 in) body, 150 mm (5.91 in) long including SH80 stylus holder
Quill mounting

KM80: 80 mm × 80 mm quill to kinematic SP80 quill mount (standard)

KM6080: 60 mm × 60 mm to 80 mm × 80 mm kinematic SP80 probe mount (option)

SM80 : Shank mount and other custom made adaptor plates available - contact your Renishaw supplier for details

Measurement range

3-axis measurement:

±1.25 mm (PX) *

±2.5 mm (PY, PZ) *

Overtravel range

PY * and PX * protected by breakout of the kinematic joint to the SH80

PZ * has a mechanical bump stop

Resolution of digital scales0.02 μm
Measurement capability test to ISO10360-2 **Typically <1.0 μm MPETHN with a 60 mm stylus
Scanning capability test to ISO10360-4 **

Typically <1.5 μm MPETHN with a 60 mm stylus

Time for scan = 74 s

Return to zeroApproximately 1% of working deflection
Spring rate

Approximately 2.5 N/mm (PX) *

Approximately 1.6 N/mm (PY, PZ) *

Stylus carrying capability

Renishaw M5 stylus range

Maximum 300 g mass (unbalanced) as per fig. 14 ***

Maximum 500 mm projection #

Mass

SP80H probe body only: 860 g

SH80 stylus holder: 185 g

KM80 quill mount: 110 g

Pull off force of SH80<20 N when using SCP80V - otherwise approximately 80 N
Probe power supply+9 V to +18 V @ 300 mA maximum dc
System power supply (including IU80)+5 V ± 0.25 V @ 1 A maximum dc
SP80 probe outputs (X, Y, Z)1.5 V ± 0.25 V p-p. analogue quadrature signal (nominal 2.5 V zero crossing reference)
Interfacing options

Using a UCC2-2 SP80 daughtercard for direct integration

Using Renishaw PCI countercard (CC6) and interpolator unit (IU80)

Other interface card designed by OEM and used in conjunction with an IU80

Using a countercard and interpolator units designed by the OEM

Change rack systemSP80V mounted to on OEM supplied extension

* Where P specifies that it is the probe's axis rather than the machine's

** Tested on a CMM with specification of 0.48 μm + L/1000 with touch and scanning deflections ≤ 0.15 mm

*** Stylus centre of gravity to be within area A of graph

# Longer stylus lengths may be carried subject to operating conditions - consult Renishaw for application assistance

Flyers and brochures

Data sheets

Installation and user's guides

  • Installation guide: SP80 and SP80H

    This installation and integration guide is intended to assist OEM and Renishaw personnel in the initial installation, integration and use of the Renishaw SP80 and SP80H ultra-high accuracy scanning probes. The SP80 and SP80H are quadrature output measurement probes that provide class-leading performance, as well as the most flexible use of styli for maximum productivity.

    [784kB]
  • User's guide: SP80 and SP80H

    The SP80 system comprises the SP80 or SP80H ultra-high accuracy scanning probe, the probe interface and a rack system for stylus holder changing.

    [969kB]
 Part number
SP80 scanning probe kits
SP80 kit 1 including 1 SH80, 1 × KM80, 1 × SH80K and 1 × SH80 removal tool

A-2238-0700

SP80 kit 2 including 1 × SH80, 1 × KM80, 1 × SH80K, 1 × SH80 removal tool, 3 × SCP80 and 1 × 600 mm MRS kit

A-2238-0732

SP80 kit 3 including 1 × SH80, 1 × KM80,1 × SH80K, 1 × SH80 removal tool, 4 × SCP80 and 1 × 600 mm MRS kit

A-2238-0733

SP80 kit 4 including 1 × SH80, 1 × KM80, 1 × SH80K, 1 × SH80 removal tool, 5 × SCP80 and 1 × 1000 mm MRS kit

A-2238-0734

SP80 kit 5 including 3 × SH80, 1 × KM80,1 × SH80K, 1 × SH80 removal tool, 3 × SCP80 and 1 × 600 mm MRS kit

A-2238-0735

SP80 kit 6 including 4 × SH80, 1 × KM80, 1 × SH80K, 1 × SH80 removal tool, 4 × SCP80 and 1 × 600 mm MRS kit

A-2238-0736

SP80 kit 7 including 5 × SH80, 1 × KM80, 1 × SH80K, 1 × SH80 removal tool, 5 × SCP80 and 1 × 1000 mm MRS kit

A-2238-0737

SP80H scanning probe kits
SP80H kit 1 including 1 SH80, 1 × KM80, 1 × SH80K and 1 × SH80 removal tool

A-2238-0419

SP80 and SP80H stylus changing accessories
SCP80 stylus change port for SP80 (for use with MRS / MRS2 system)

A-2238-0706

SCP80V stylus change port for SP80 and SP80H

A-2238-0726

SH80 stylus holder for SP80 and SP80H

A-2238-0705

SH80K kinematic stylus holder for SP80 and SP80H

A-2238-0430

SH80 removal tool for SP80 and SP80H

M-2238-0443

SP80 and SP80H interfaces and counter cards
IU80 interpolator unit for SP80 and SP80H

A-2238-0720

CC6 counter card for SP80 and SP80H (includes PL158 cable)

A-4068-0400

SP80 accessories
SM80 shank mount plate for SP80 and SP80H

A-2238-0704

KM80 standard kinematic mount for SP80 and SP80H

A-2238-0703

KM6080 60 mm to 80 mm quill adaptor for SP80 and SP80H

A-2238-0020

PHA80 - SP80 to KM1 quick change adaptor

A-2238-0752
