System connections

The REVO-2 system components are connected as shown below.

NOTE: REVO-2 requires just a single cable for power and communications.

Installation for up to 3 axes with head cable less than 25 m

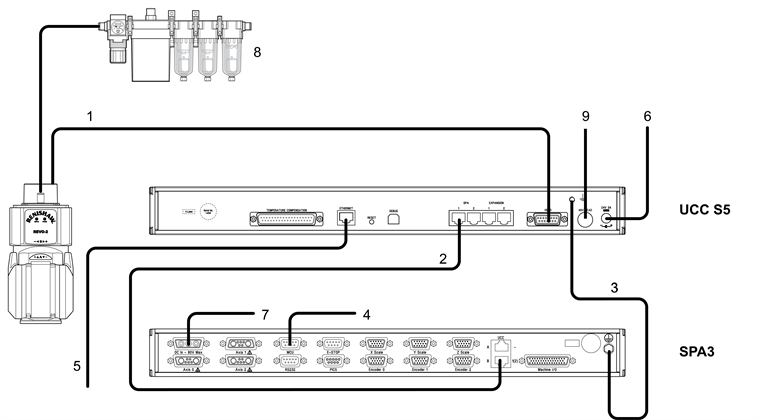

1 x SPA3 and UCC S5 interconnection diagram with REVO-2



Key

Description

Key

Description

1

Head cable

6

24 V power supply (supplied)

2

CAT 5 300 mm cable (supplied)

7

25 V - 80 V power supply (not supplied)

3

16 / 0.2 mm earth connection

8

Air filter

4

MCU connection

9

48 V power supply (supplied)

5

CAT 5 ethernet cable (5 m cross-over cable supplied) to host PC





Installation for 4 - 6 axes with head cable exceeding 25 m and thermal effect compensation (TEC)

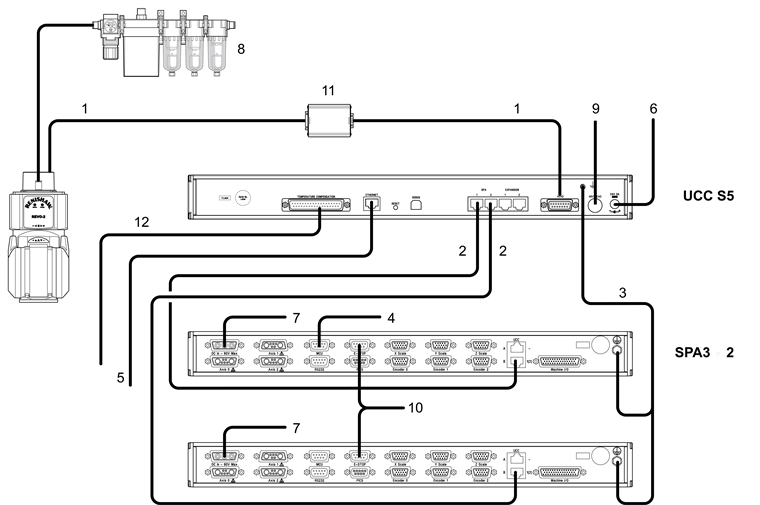

2 x SPA3 and UCC S5 interconnection diagram with REVO-2 - with signal booster



Key

Description

Key

Description

1

Head cable

7

25 V - 80 V power supply (not supplied)

2

CAT 5 300 mm cable (supplied)

8

Air filter

3

16 / 0.2 mm earth connection

9

48 V power supply (supplied)

4

MCU connection

10

E-STOP link cable (supplied)

5

CAT 5 ethernet cable (5 m cross-over cable supplied) to host PC

11

Head comms signal booster

6

24 V power supply (supplied)

 12

TEC input

The REVO-2 head and CMM system are operated through UCCserver which uses I++DME command protocol to communicate between the system application software and the UCC S5.

Full 5-axis scanning capability is achieved through interaction between the UCC S5, the REVO-2 and the SPA3, to co-ordinate all the motion and metrology aspects across the three CMM axes and the two head axes.
