System interconnection diagrams

PH10 PLUS system with standard two wired touch-trigger probes

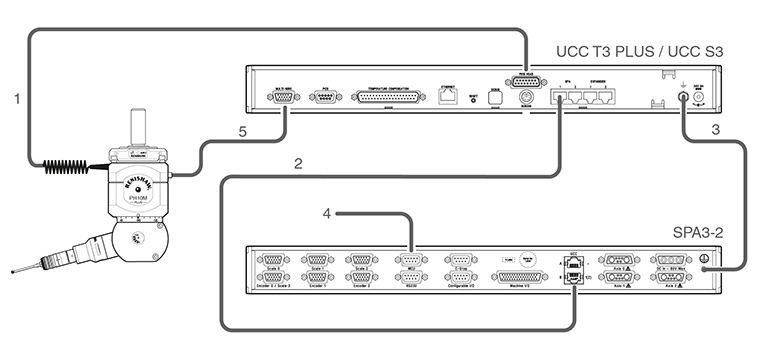

UCC T3 PLUS / UCC S3 rear panel scheme - labelled

Key

Description

Key

Description

1

Head cable(s)

4

SCR200 rack connection

2

RJ45 cable (supplied)

5

MCU connection

3

16 / 0.2 mm earth connection



PH10 PLUS system with multiwire scanning probes

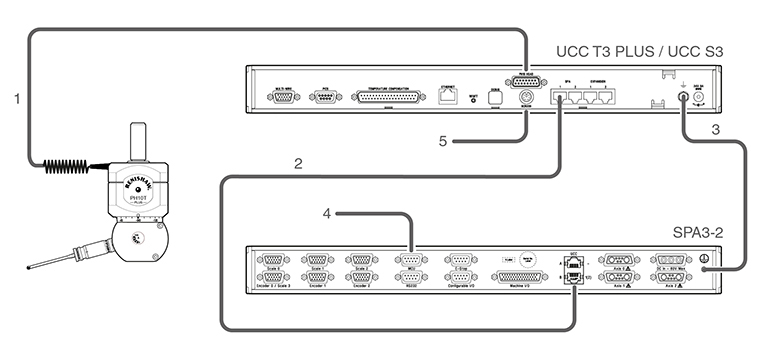

UCC T3 PLUS_S3_SPA3_PH10 PLUS system with multiwire scanning probes

Key

Description

Key

Description

1

Head cable(s)

4

MCU connection

2

RJ45 cable (supplied)

5

Multiwire cable

3

16 / 0.2 mm earth connection
