System status indicators

The head incorporates two LEDs for status indication in various modes:

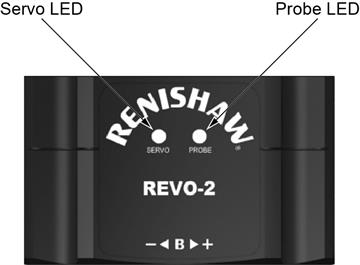

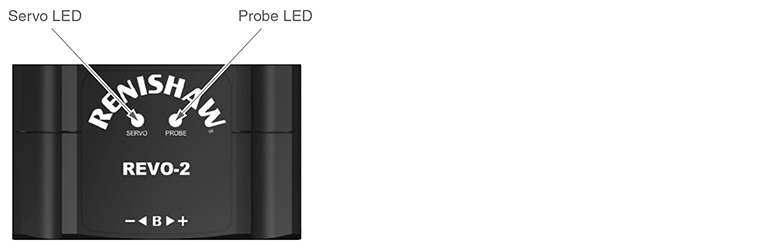

System status LEDs - labelled



LED status

Servo LED

Probe LED

Off

No power (probe LED also off)

Probe trigger

Green

Servos on

Probe calibrated

Red

Servos off

Stylus removed (or probe error)

Red flash

Comms to head failed (probe LED also off)

Probe removed from head

Amber

'Soft engage' mode

Probe turned off

Amber flash

Auto-tune in progress

Probe not calibrated
