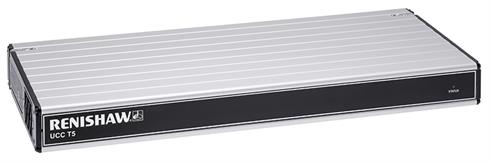

UCC T5

  • UCC T5CMM controller for 5-axis touch-trigger motion and head control - PH20 only
  • Must be used in conjunction with a Renishaw SPA3 amplifier
  • Uses an external power supply and manages full control of the PH20 head, CMM and probe signals and communicates with the CMM's computer
  • Replaces the UCC2-2 and 5-axis daughtercard for PH20 installations
  • Has integral thermal error compensation (TEC) with support for 16 channels of
    temperature compensation
  • Setup and commissioning should be completed through Renishaw's UCCassist-2 software

UCC comparison

■  Standard specification

-  Not available

Function / specificationUCC T3-2UCC T3 PLUSUCC S3UCC T5UCC S5UCC2-2
TP200 / SCR200 interface--
SP600 interface----
SP25M interface----
SP80 interface-----By interface card
PH10 interface---By interface card
PH20 interface----By interface card
REVO interface-----By interface card
REVO-2 interface-----
Number of CMM axes controlled333334 (XYZ + 1 additional axis)
Configurable additional axis (rotary table, dual scale, dual drive)Second SPA3 requiredSecond SPA3 requiredSecond SPA3 requiredSecond SPA3 requiredSecond SPA3 requiredFurther axes by additional cards
SPA (servo power amp) compatibilitySPA3SPA3SPA3SPA3SPA3SPA3, SPA2-2
Analogue SPA output ±10 V-----
Temperature sensor inputs-1616161624 by interface card
Compatible with existing daughtercards-----
Maximum real time scanning data rate--SP25M: 2000 points/s-REVO-2: 4000 points/sREVO: 4000 points/s
SP25M: 2000 points/s
Integral ac power supply-----
External dc power supply-
Uncommitted CMM I/O2 inputs + 1 output2 inputs + 1 output2 inputs + 1 output2 inputs + 1 output2 inputs + 1 output6 inputs + 7 outputs
Function / specificationUCC T3-2UCC T3 PLUSUCC S3UCC T5UCC S5UCC2-2

Dimensions

 UCC T3-2UCC T3 PLUSUCC S3UCC T5UCC S5UCC2-2
Width440 mm (19 in enclosure)440 mm (19 in enclosure)440 mm (19 in enclosure)440 mm (19 in enclosure)440 mm (19 in enclosure)435 mm (19 in enclosure)
Height44 mm (1U)44 mm (1U)44 mm (1U)44 mm (1U)44 mm (1U)127 mm (3U)
Depth180 mm180 mm180 mm180 mm180 mm330 mm
Weight

2.1 kg

(4 lb 10 oz)

2.6 kg

(5 lb 12 oz)

2.6 kg

(5 lb 12 oz)

2.1 kg

(4 lb 10 oz)

2.1 kg

(4 lb 10 oz)

8 kg

(17 lb 10 oz) – without cables and option boards

The following details are common to all UCC controllers:

  • Configured for direct CNC controlled (DCC) CMMs
  • Processor type: 1.6 GHz Intel Atom
  • Suitable hand control unit: MCUlite-2, MCU5, MCU5-2, MCU W, MCU W-2
  • Digital SPA control output
  • Communications link with PC: Ethernet
  • PC operating system compatibility: XP pro, Windows 7, Windows 8
  • Servo loop time: 0.5 ms
  • Touch-trigger probing (TTP) function
  • Renishaw UCCserver (I++ DME)
  • Common UCC software integration
  • Digital scale input: RS422 - Renishaw
  • Analogue scale input: By external interface
  • Power available for I/O: 24 V at 1 A
  • I/O specification:
    • User configurable
    • Active HIGH or LOW
    • Voltage range 5 V to 24 V
    • Outer and inner limit switch compliant
    • Soft limit compliant
    • CMM volumetric error map function
    • Renishaw UCCassist compatible

Installation and user's guides

  • Installation guide: UCC T5

    The UCC T5 must be used in conjuction with a Renishaw SPA3. Setup and commisioning should be completed through Renishaw's UCCassist-2 software. The UCC T5 has replaced the UCC2 and 5-axis daughtercard. It also replaces the TEC card and provides support for 16 channels of temperature compensation. The UCC T5 uses an external power supply and manges full control of the PH20 head, CMM and probe signals and communicates with the CMM's computer.

    [766kB]
  • Installation and user's guide: Thermal effect compensation for UCC1 and UCC2
    [620kB]

Declarations



 Part number

PH20 system kit 1 (includes: 1 × PH20, 1 × UCC T5, 1 × SPA3, 1 × 48 V to 58 V PSU - MCU joystick must be ordered separately)A-5518-1091
PH20 system kit 2 (includes 1 × PH20, 1 × UCC T5, 1 × SPA3 (no PSU) - MCU joystick must be ordered separately)A-5518-1092
