UCC2-2 SP80 daughtercard

The SP80 daughtercard is one of a range of plug-in daughtercards for the Renishaw UCC2-2 universal CMM controller and permits use with the SP80 and SP80H. The SP80 daughtercard consists of a printed circuit board mounted together with a metal end plate for fixing within the UCC controller. The board itself has a single connector to suit the UCC2-2 controller internal bus sockets and a single connector accessible from the back panel of the UCC2-2 for system connection.

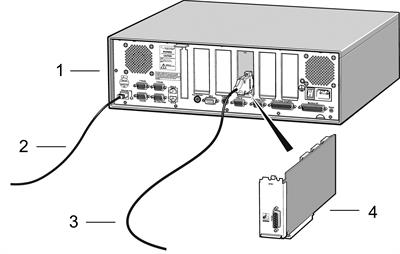

UCC2 and SP80 daughtercard

Key

Description

1

UCC2-2 controller

2

Link to host computer

3

Probe cable

4

SP80 daughtercard
