Formed C section beam

Gauge R&R type 1 and type 2 tests on key control features - Perpendicularity of the left and right sides to the bottom, parallelism of the left and right sides, and the flatness of the bottom plane

Page contentDownloadsCall your local office Contact us online

Gauge R&R study

Gauge R&R type 1

Gauge R&R type 1 tests are simple repeatability trials with one operator, one part and multiple repetitions. Results show gauge repeatability.

Test conditions gauge R&R type 1

Gauging cycle time55 sec
Repetition32



Test results gauge R&R type 1

Feature measuredCgCgk% of tolerance
Left to bottom plane 6.56 6.41 3.05
Right to bottom plane 9.76 9.65 2.05
Left to right plane 4.20 4.15 4.76
Bottom plane flatness9.92 9.80 2.02



Gauge R&R type 2

Gauge R&R type 2 tests involve multiple operators, multiple parts and multiple repetitions. Results give an indication of real world conditions, including factors such as gauge repeatability, fixture distortion and operator  inconsistencies.

Test conditions gauge R&R type 2

Gauging cycle time47 sec
Number of components3
Mastering frequency3
Number of operators4
Number of repetitions7
Total gauging operations84



Test results gauge R&R type 2

Feature measuredTolerance% of tolerance*
Left to bottom plane 0.17.73
Right to bottom plane 0.1 8.78
Concentricity0.18.43
Diameter0.1 7.80

* R&R of measuring process (using Equator) as % of tolerance

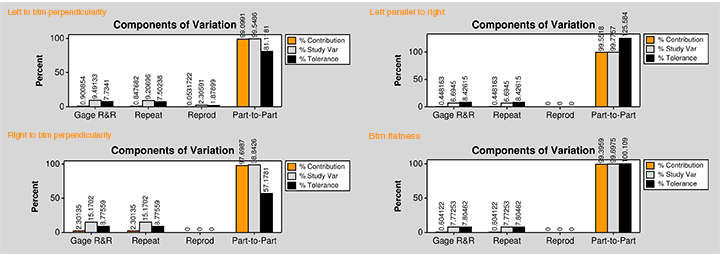

Formed C section beam R&R chart
