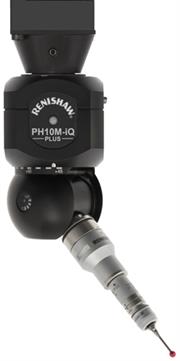

PH10M-iQ PLUS

The range of PH10 PLUS motorised probe heads increases throughput by giving automated CMMs the added capability of program controlled probe re-orientation. This enables the inspection of features at different angles without the need for frequent, time consuming stylus cluster changes.

Less time calibrating, more time measuring!

PH10M-iQ PLUS

The inferred qualification allows PH10M‑iQ PLUS to access multiple positions without having to recalibrate for each one.

  • PH10M‑iQ PLUS is supplied with a calibration file that is created during manufacture
  • This calibration file is then applied by the probe routine on the CMM *
  • Following a quick initial calibration procedure, PH10M‑iQ PLUS allows the user to operate the head / probe combination in every orientation possible without recalibration
  • PH10M‑iQ PLUS increases throughput by reducing calibration overhead
  • Scanning probes can only be used in traditional PH10 mode with PH10M‑iQ PLUS; touch-trigger probes can use the inferred qualification method

Length

117 mm (4.6 in)

Width

60 mm (2.44 in)

Weight

645 g (22.07 oz)

Probe mounting

Renishaw autojoint (multiwire)

M8 threaded probes can be used with a PAA probe adaptor

Head mounting

Shank to suit CMM

Suitable controller

PHC10-3 PLUS

Angular movement

A-axis: 0° to 105° in 7.5 steps

B-axis: 0° to 180° in 7.5 steps

Total number of positions

720

* Must be supported by application software

Extended warranty

For peace of mind a 3-year warranty is available for your new CMM products during the first 3 months from purchase. Contact your vendor.

Product information

You may also be interested in...

You are currently looking at the PH10M-iQ PLUS motorised head. You may also want to learn about the PH20 5-axis head which also incorporates inferred qualification…
