Servo housing

Gauge R&R type 1 and type 2 tests on key control features - X and Y position, concentricity and diameter of the large bore

Page contentDownloadsCall your local office Contact us online

 Gauge R&R study



Gauge R&R type 1

Gauge R&R type 1 tests are simple repeatability trials with one operator, one part and multiple repetitions. Results show gauge repeatability.

Test conditions gauge R&R type 1

Gauging cycle time23 sec
Repetition 32



Test results gauge R&R type 1

Feature measuredCgCgk% of tolerance
X position 6.56 6.41 3.05
Y position 9.76 9.65 2.05
Concentricity 4.20 4.15 4.76
Diameter 9.92 9.80 2.02



Gauge R&R type 2

Gauge R&R type 2 tests involve multiple operators, multiple parts and multiple repetitions. Results give an indication of real world conditions, including factors such as gauge repeatability, fixture distortion and operator inconsistencies.

Test conditions gauge R&R type 2

Gauging cycle time 23 sec
Number of components
Mastering frequency
Number of operators
Number of repetitions
Total gauging operations 84



Test results gauge R&R type 2

Feature measuredTolerance% of tolerance*
X position 0.04 9.36
Y position 0.06 9.76
Concentricity 0.08 6.97
Diameter 0.07 8.65

* R&R of measuring process (using Equator) as % of tolerance

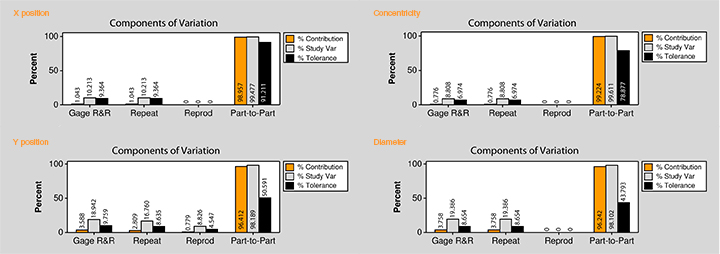

Servo housing R&R chart
