 | StreamLine™ Plus Raman imagingStreamLine™ Plus is a novel Raman imaging technique that enables Raman users to take complete control of their imaging experiments. Fast, flexible and fully scalable - it must be seen to believed. What can StreamLine™ Plus do for you?
- Speed up your data collection and analysis - 200x faster than point by point mapping - collect 4,000 spectra in less than 1 minute
- Unique - generate Raman images with a variable spatial resolution ranging from millimeters to sub-micrometer
- Real time image display - live spectral analysis and image display during data collection
- Excellent results without compromising data quality or damaging the sample by using high laser powers with reduced laser power density
- Compatible with all wavelengths from the UV to the NIR
- Available as an upgrade for all inVia systems

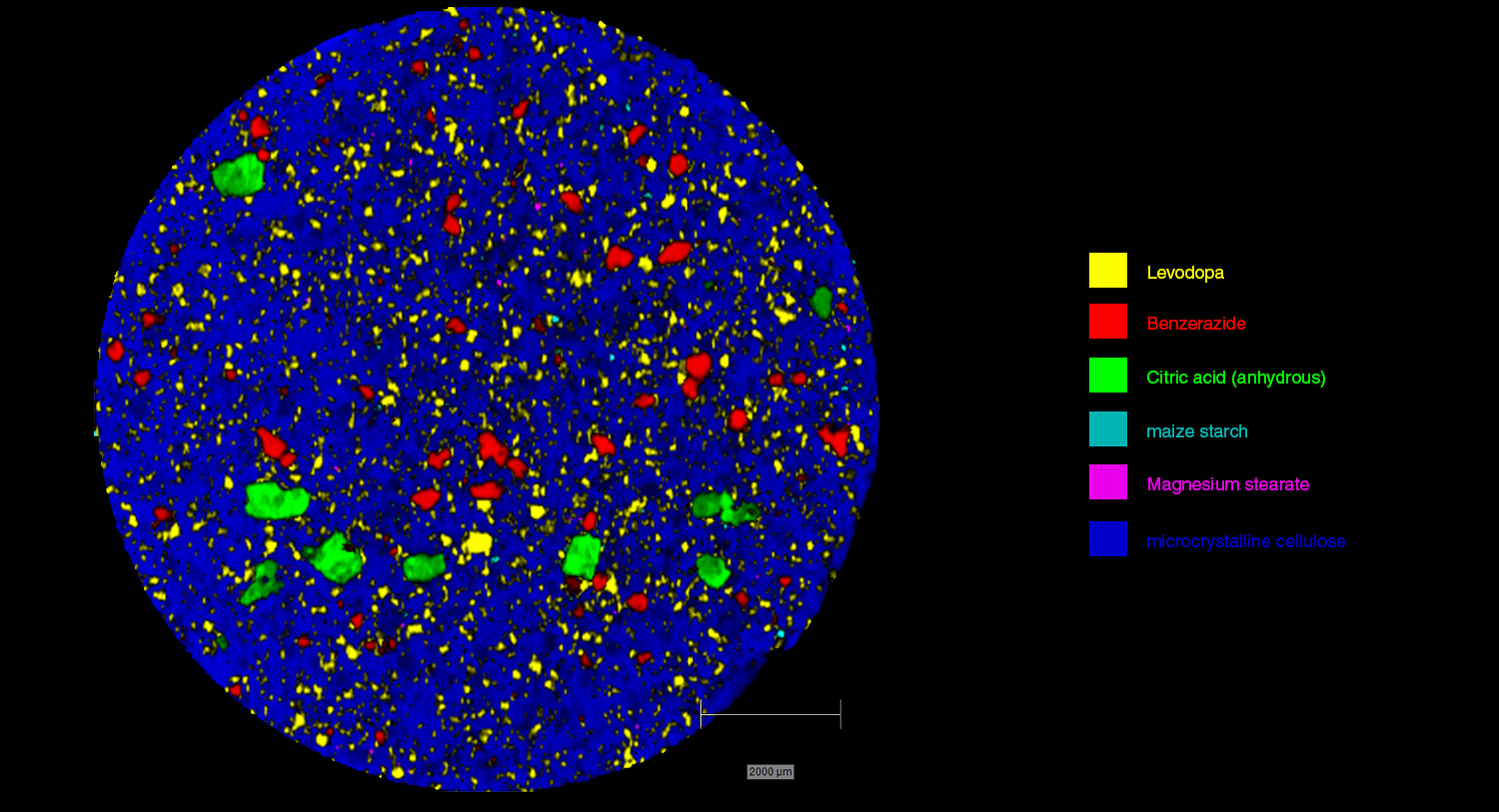

Speed up your data collection and analysis  Complete
tablet
imaged in 4
minutes.
Generated
from >10,000
spectra.
Enjoy the flexibility of true macro and micro imaging |  |  | Survey scan: complete
tablet imaged in 4
minutes. Area identified
for further analysis | Area of interest, imaged
at 3 µm spatial resolution.
Generated from >32,000
spectra
| Sub-micrometer detail
imaged with 0.5 µm
spatial resolution.
Generated from >32,000
spectra |
Three images: - Generated from the same sample
- A total of more than 85,000 spectra
- Total combined collection and analysis time is less than 25 minutes. This includes the time to perform and display component analysis for all three images
All above images generated with live Raman imaging - see the Raman image build as data is collected Colour key: Red - caffeine, Blue - aspirin, Green - paracetamol
|
