ACC2-2 autochange controller for ACR1

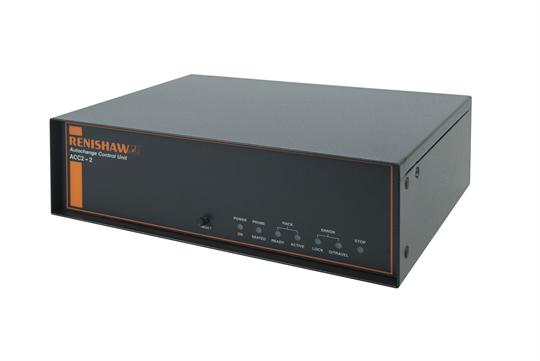

ACC2-2 controller
  • Handles communications between the CMM controller and the ACR1 autochange rack
  • Multiplexes head and rack probe signals
  • Communicates to CMM via RS232

Data transmission

Serial RS232

User definable parameters

Serial Baud rate 300 - 19200

Voltage range

85 V - 264 V 50 Hz / 60 Hz

Dimensions



Height

88 mm (3.47 in) 2'U'

Width

289.30 mm (11.40 in) - 2/3 of a 19" rack

Depth

220 mm (8.66 in)

Weight

3.85 kg (8.49 lb)

Installation and user's guides

  • User guide:  Autochange system
    User guide: Autochange system

    Renishaw’s ACR1 is a fully integrated 8 port probe exchange system. Mounted within the CMM’s working envelope, the autochange system facilitates fast, automatic probe exchange without the need for re-qualification of the probe assembly.

  • Installation guide:  Autochange system
    Installation guide: Autochange system

    Renishaw's autochange equipment is the world's first integrated CMM probe exchange system. Mounted within the CMM's working envelope, the autochange system facilitates fast, automatic probe exchange without the need for re-qualification of the probe assembly.

  • Installation & user's guide:  Autochange system
    Installation & user's guide: Autochange system

    Installation and programmer's guide for Renishaw's autochange system

 Part number
ACR1 8 port autochange rack kitA-1051-4000
ACC2-2 autochange controller for ACR1
ACC2-2 autochange rack controller (RS232 only)A-1520-0101
ACR1 accessories and cables
ACR1 MK (H) horizontal mounting kitA-1051-0441
ACR1 MK (V) vertical mounting kit (to mount the ACR1 vertically both mounting kits need to be ordered.)A-1051-1308
ACR1 additional 100 mm legM-1051-0147
ACR1 additional 200 mm legM-1051-0148
ACR1 long port replacement kitA-1051-7077
ACR1 short port replacement kitA-5036-0049
ACR1 mixed port replacement kitA-1051-7076
ACR3 autochange rack
4 port passive probe and extension bars autochange rack. Requires an MRS kit for mounting on to a CMM. If 8 ports are required, 2 ACR3s can be mounted on one MRS rail.
ACR3 4 port autochange rack kitA-5036-0005
ACR3 8 port autochange rack kitA-5036-0500
MAPS manual autojoint probe stand
Stores up to 6 autojointed probes or extension bars
MAPS manual autojoint probe stand kitA-1071-0001
