FCR25 and FCR25 TC
FCR25 flexible change rack
FCR25 allows all SP25M elements to be rapidly interchanged automatically- Each FCR25 unit has 3 ports which take SM25‑# or TM25-20 modules
- FCR25 mounts directly on the MRS allowing multi-port systems to be created
- PA25-SH adaptor is used to convert a port to take SH25-# stylus holders
- PA25-20 adaptor is used to convert a port to take TP20 modules
- FCR25-L3 and FCR25-L6 are 3/6 port standalone version respectively - these will be of particular interest to users of small CMMs or vision CMMs where space is very limited
- Thermally controlled ports (FCR25 TC) enable rapid and repeatable changing of all SM25 scanning modules whilst they are maintained at the same temperature as a working probe
Shop online

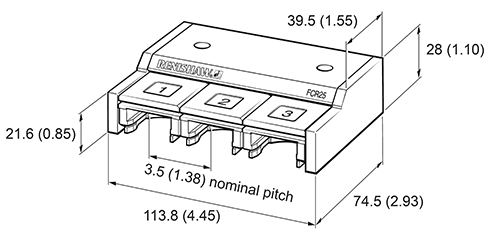

Dimensions
FCR25 and FCR25 TC
FCR25-L3 (3 port) and FCR25 TC-L3
FCR25-L6 (6 port)
Installation and user's guides
-
User guide: SP25M, FCR25, ACR3 system
Renishaw’s innovative SP25M is the world’s most compact and versatile scanning probe system and is actually two sensors in one - enabling the user to scan for form measurement or reverse engineering and as a touch-trigger probe (TTP) for geometric size and position measurement.
Other
-
Instruction leaflet: ACR1 / ACR3 / FCR25 port replacement
Renishaw racks allow fast repeatable exchanging of probes and styli without the need for manual intervention. This leaflet covers the replacement of ports for ACR1, ACR3 and FCR25 racks.
| Part number | |
|---|---|
| SP25M scanning probe kits | |
| SP25M special scanning and touch-trigger probing full combination kit includes 1 × SP25M scanning probe kit # 1, 1 × SM25-2 scanning module kit,1 × SM25-3 scanning module kit and 1 × TM25-20 TTP module adaptor only | A-2237-1015 |
| SP25M scanning probe kit # 1 (entry level kit) includes 1 × SP25M probe body and 1 × SM25-1 scanning module kit | A-2237-1001 |
| SP25M scanning probe sensor kit #2 (entry level kit) includes 1 × SP25M probe body and 1 × SM25-2 scanning module kit | A-2237-1002 |
| SP25M scanning probe sensor kit #3 (entry level kit) includes 1 × SP25M probe body and 1 × SM25-3 scanning module kit | A-2237-1003 |
| SP25M scanning probe sensor kit #4 (entry level kit) includes 1 × SP25M probe body + 1 × SM25-4 + 1 × SH25-4 + 'basic' stylus kit | A-2237-1004 |
| SP25M scanning probe sensor kit #5 (entry level kit) includes 1 × SP25M probe body + 1 × SM25-5 + 1 × SH25-5 + 'basic' stylus kit | A-2237-1005 |
| SP25M probe module kits | |
| SM25-1 scanning module kit includes 1 × SM25-1 and 2 × SH25-1 | A-2237-1101 |
| SM25-2 scanning module kit includes 1 × SM25-2 and 2 × SH25-2 | A-2237-1102 |
| SM25-3 scanning module kit includes 1 × SM25-3 and 2 × SH25-3 | A-2237-1103 |
| SM25-4 scanning module kit includes 1 × SM25-4 and 1 × SH25-4 plus a 'basic' stylus kit | A-2237-1108 |
| SM25-4 scanning module kit includes 1 × SM25-4 and 2 × SH25-4 plus a ''basic' stylus kit | A-2237-1109 |
| SM25-4 scanning module kit includes 1 × SM25-4 and 2 × SH25-4 plus a 'full' stylus kit | A-2237-1104 |
| SM25-5 scanning module kit includes 1 × SM25-5 and 2 × SH25-5 | A-2237-1105 |
| TM25-20 touch-trigger probe module adaptor only | A-2237-1200 |
| TM25-20 touch-trigger probe module adaptor kit #1 includes 1 × TM25-20 and 2 × TP20 'STD' modules | A-2237-1201 |
| SP25M body | |
| SP25M body only | A-2237-1000 |
| SP25M scanning modules | |
| SM25-1 scanning module | A-2237-1111 |
| SM25-2 scanning module | A-2237-1112 |
| SM25-3 scanning module | A-2237-1113 |
| SM25-4 scanning module | A-2237-1114 |
| SM25-5 scanning module | A-2237-1115 |
| SP25M stylus holders | |
| SH25-1 stylus holder kit (includes 1 x stylus holder, 1 x stylus tool kit) | A-2237-1301 |
| SH25-2 stylus holder kit (includes 1 x stylus holder, 1 x stylus tool kit) | A-2237-1302 |
| SH25-3 stylus holder kit (includes 1 x stylus holder, 1 x stylus tool kit) | A-2237-1303 |
| SH25-4 stylus holder kit (includes 1 x stylus holder, 1 x stylus tool kit) | A-2237-1304 |
| SH25-5 stylus holder kit (includes 1 x stylus holder, 1 x stylus tool kit) | A-2237-1305 |
| SH25-2A stylus holder kit (includes 1 x stylus holder, 1 x stylus tool kit) | A-2237-1702 |
| SH25-3A stylus holder kit (includes 1 x stylus holder, 1 x stylus tool kit) | A-2237-1703 |
| SH25-4A stylus holder kit (includes 1 x stylus holder, 1 x stylus tool kit) | A-2237-1704 |
| FCR25 change racks | |
| FCR25 flexible change rack unit (triple-port units for MRS system) includes 1 × FCR25, 3 × PA25-SH and 3 × PA25-20 | A-2237-1401 |
| FCR25 - 3 port standalone change rack unit includes 1 × FCR25 with integral leg for table mount, 3 × PA25-SH and 3 × PA25-20 | A-2237-1403 |
| FCR25 - 6 port standalone change rack unit includes 2 × FCR25 with integral leg for table mount, 3 × PA25-SH and 3 × PA25-20 | A-2237-1406 |
| FCR25 port adaptor insert kit includes 3 × PA25-SH and 3 × PA25-20 | A-2237-1415 |
| FCR25 TC flexible change rack unit (triple-port units for MRS system) includes 1 × FCR25 TC | A-2237-1408 |
| FCR25 TC - 3 port standalone change rack unit includes 1 × FCR25 TC with integral leg for table mount | A-2237-1409 |
| SP25M interface card | |
| AC3 ISA interface card for use with SP25M | A-2237-1601 |
