Medit blue light scanners
Take full advantage of Medit's T300 and T500 fast scanning times and adaptable nature to help streamline your laboratory's workflow and increase productivity.
High speed scanning

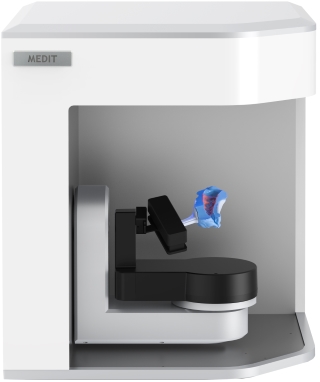

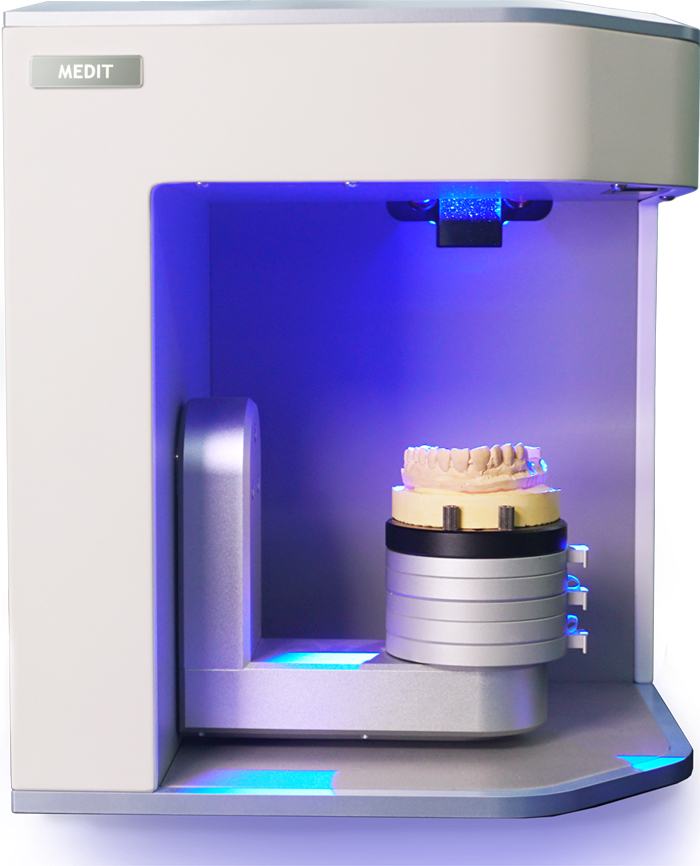

We supply and support Medit's T300 and T500 dental scanners, bringing flexibility, speed and accuracy to Renishaw's scanner line-up.
Intelligent multi-view allows the selection of the best possible angles to acquire the required data.
Impression scanning is fast and accurate, allowing the digital manufacturing process to proceed without the need of a conventional model.
Multi-die mode allows for the rapid creation of high volumes of shell copings.
Features at a glance
| Medit T300 | Medit T500 | |
| Scanning volume | 90 mm x 72 mm x 60 mm | 90 mm x 72 mm x 60 mm |
| Dimensions | 290 mm x 290 mm x 340 mm | 290 mm x 290 mm x 340 mm |
| Impression scanning | 2-axis manual | 3-axis automatic |
| Weight | 12 kg | 12 kg |
| Light source | Blue LED | Blue LED |
| Connectivity | USB 3.0 B type | USB 3.0 B type |
| Scan speed (full arch) | 24 seconds | 12 seconds |
Modules and extras
| Medit T300 | Medit T500 | |
| 2-axis manual impression jig | ♦ | n/a |
| Articulator module | ♦ | ♦ |
| 3-axis impression arm | o | ♦ |
| Articulator plate | o | o |
| Colour texture scan module | o | ♦ |
| Flexible multi-die | o | ♦ |
| KAS (KAVO, ARTEX and SAM) jig | o | o |
♦ Included
o Optional
