Installation animation: How to install the CENTRUM™ self-centring scale disc with bolts (mp4)
File size: 42.40 MB
Language: English
Dimensions: 1920 x 1080 px
Part number: V-9400-0076

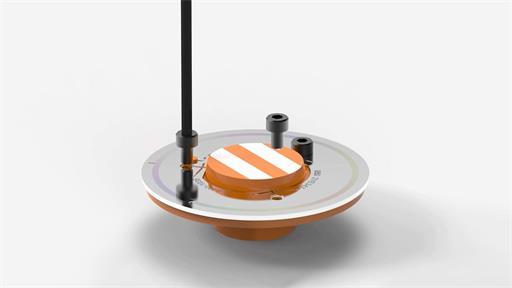

CENTRUM™ CSF40 is a stainless steel encoder scale disc. It includes innovative alignment flexures that automatically centre the scale when pushed onto a shaft, providing improved metrology performance. CENTRUM self-centring scale discs are quick and easy to install 'right first time': no additional gauges or set-up devices are required. This video shows how to install a CENTRUM disc with bolts.
