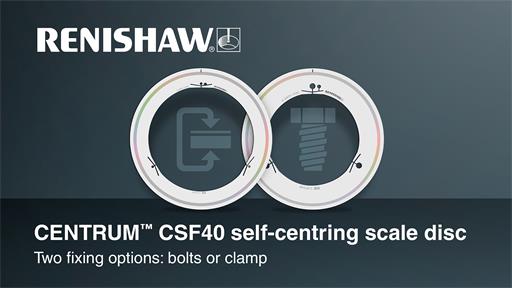

Introducing the CENTRUM™ CSF40 self-centring scale disc with a clamp fixing option (mp4)

File size: 112.03 MB Language: English Dimensions: 3840 x 2160 px Part number: V-9400-9424

For use with the ATOM DX™ encoder series, CENTRUM™ CSF40 scale discs are quick and easy to install ‘right first time’, due to their innovative mounting features that automatically centre the scale when pushed onto an appropriately sized shaft. These alignment features enable fast installation with highly consistent installed accuracy. There is now an option for fixing with a clamp, in addition to fixing with bolts.
