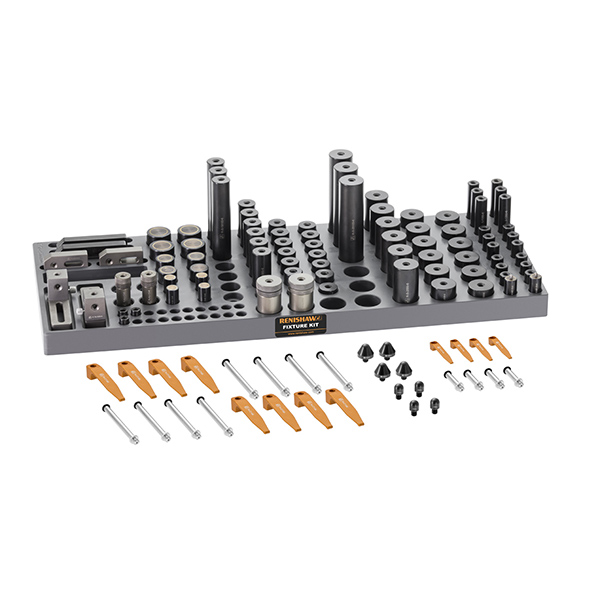

M6 CMM and Equator™ magnetic and clamping kit B

Product code: R-FSC-MCB-6

Price: $2,430.00

All prices are ex sales tax

Stocked item

Normally dispatched within 2 working days

Processing request

This advanced M6 magnetic and clamping kit is particularly useful for holding ferrous workpieces, but can also be used to hold brass, titanium, aluminium, plastic and non-ferrous parts. It is recommended for use on CMMs and Equator systems.

Technical table

ApplicationCMM & Equator
Clamp typeMagnetic and clamping
Component setB
Measurement systemMetric
Plate optionwithout plate
ThreadM6
Part NumberDescriptionQuantity
R-M-13-6 Ø 13 mm × 25 mm magnet
R-M-19-6 Ø 19 mm × 25 mm magnet
R-M-25-6Ø 25 mm × 25 mm magnet4
R-MP-13-6Ø 13 mm × 25 mm pin magnet2
R-S-910-6Ø 9 mm × 10 mm standoff3
R-S-1320-6Ø 13 mm × 20 mm standoff6
R-S-1325-6Ø 13 mm × 25 mm standoff6
R-S-1350-6Ø 13 mm × 50 mm standoff6
R-S-1910-6Ø 19 mm × 10 mm standoff3
R-S-1920-6Ø 19 mm × 20 mm standoff6
R-S-1925-6Ø 19 mm × 25 mm standoff6
R-S-1950-6Ø 19 mm × 50 mm standoff6
R-S-19100-6Ø 19 mm × 100 mm standoff3
R-S-2520-6Ø 25 mm × 20 mm standoff6
R-S-2525-6Ø 25 mm × 25 mm standoff6
R-S-2550-6Ø 25 mm × 50 mm standoff6
R-S-25100-6Ø 25 mm × 100 mm standoff3
R-CT-40-30-640 mm tension clamp with 30 mm post with M6 thread4
R-CT-64-70-664 mm tension clamp with 70 mm post with M6 thread8
R-RCD-6Delrin® resting cone with M6 thread4
R-RPS-6Steel resting pin with M6 thread4
R-AJ-13-6Ø 13 mm adjustable jack stand with M6 thread2
R-AJ-25-6Ø 25 mm adjustable jack stand with M6 thread2
R-AS-45-6Ø 45 mm long adjustable slide with M6 thread2
R-AS-70-670 mm long adjustable slide with M6 thread2
R-TB-2025-6M6 tower block with base 20 mm sq. × 30 mm2
R-TC-500200500 mm × 200 mm × 25 mm component tray to hold M6 and M8 components1
R-BC1050 mm × 200 mm × 150 mm compartment box (not shown)1
