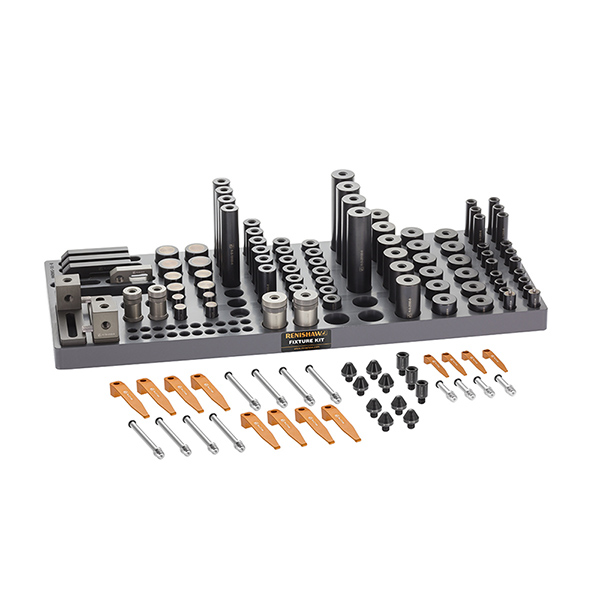

M8 CMM and Equator™ magnetic and clamping kit B

Product code: R-FSC-MCB-8

Price: $2,550.00

All prices are ex sales tax

Stocked item

Normally dispatched within 2 working days

Processing request
This advanced M8 magnetic and clamping kit is particularly useful for holding ferrous workpieces, but can also be used to hold brass, titanium, aluminium, plastic and non-ferrous parts. It is recommended for use on CMMs and Equator systems.

Technical table

ApplicationCMM & Equator
Clamp typeMagnetic and clamping
Component setB
Measurement systemMetric
Plate optionwithout plate
ThreadM8
Part NumberDescriptionQuantity
R-M-13-8 Ø 13 mm × 25 mm magnet 4
R-M-19-8 Ø 19 mm × 25 mm magnet 4
R-M-25-8Ø 25 mm × 25 mm magnet4
R-MP-13-8Ø 13 mm × 25 mm magnet2
R-S-1315-8Ø 13 mm × 15 mm standoff3
R-S-1320-8Ø 13 mm × 20 mm standoff6
R-S-1325-8Ø 13 mm × 25 mm standoff6
R-S-1350-8Ø 13 mm × 50 mm standoff6
R-S-1915-8Ø 19 mm × 15 mm standoff3
R-S-1920-8Ø 19 mm × 20 mm standoff6
R-S-1925-8Ø 19 mm × 25 mm standoff6
R-S-1950-8Ø 19 mm × 50 mm standoff6
R-S-19100-8Ø 19 mm × 100 mm standoff4
R-S-2520-8Ø 25 mm × 20 mm standoff6
R-S-2525-8Ø 25 mm × 25 mm standoff6
R-S-2550-8Ø 25 mm × 50 mm standoff6
R-S-25100-8 Ø 25 mm × 100 mm standoff 4
R-CT-40-30-840 mm tension clamp with 30 mm post and M8 thread 4
R-CT-64-70-863.5 mm tension clamp with 68 mm post and M8 thread 8
R-RCD-8 Delrin® resting cone with M8 thread 4
R-RCS-8 Steel resting cone with M8 thread 4
R-AJ-19-8 Ø 19 mm adjustable jack stand with M8 thread 2
R-AJ-25-8 Ø 25 mm adjustable jack stand with M8 thread 2
R-AS-45-8 44 mm long adjustable slide with M8 thread 1
R-AS-70-8 72 mm long adjustable slide with M8 thread 3
R-TB-2530-8 25 mm² × 89 mm tower block with base and M8 thread2
R-TC-500200 500 mm × 200 mm × 25 mm component tray to hold M6 and M8 components 1
R-BC10 50 mm × 200 mm × 150 mm compartment box (not shown) 1
