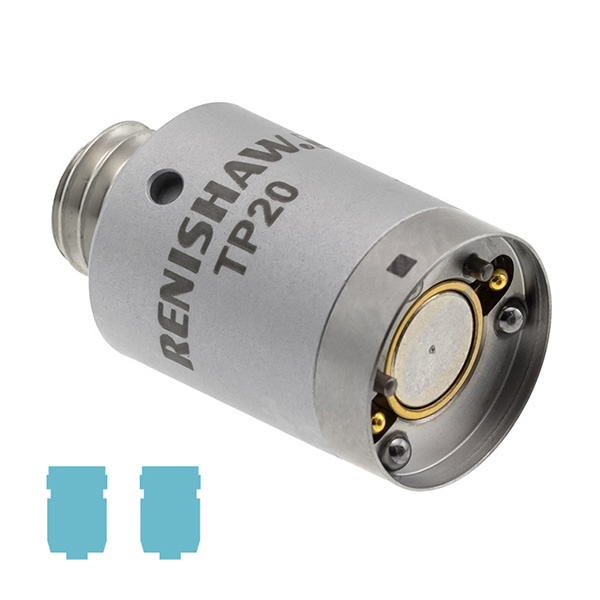

TP20 probe kit 8 (includes 2 x low force modules)

The TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip.

The low force probe module, identified by a green cap, is suited to applications that require a low trigger force to measure workpiece deflection. The low force probe module has the following recommended stylus limits:

• Steel and carbide styli up to 30 mm long
• No star or cranked styli
