Product A-8014-0551, 360° lathe adaptor kit

360° lathe adaptor kit

Product code: A-8014-0551

Price: $1,252.00

All prices are ex sales tax

Stocked item

Normally dispatched within 2 working days

Processing request

The 360° lathe adaptor kit allows the QC20-W ballbar to perform 360°, 100 mm radius ballbar tests on a lathe. The arm assembly attaches to the lathe turret and the spindle bar attaches to the lathe spindle. Both arm and spindle bar include magnetic cups to locate the ballbar. Note: On lathes with restricted axis travel, it may be possible to perform a 50 mm radius test using the small circle accessory kit. It is crucial, however, to ensure that there is clearance for the ballbar in this configuration before performing the test.

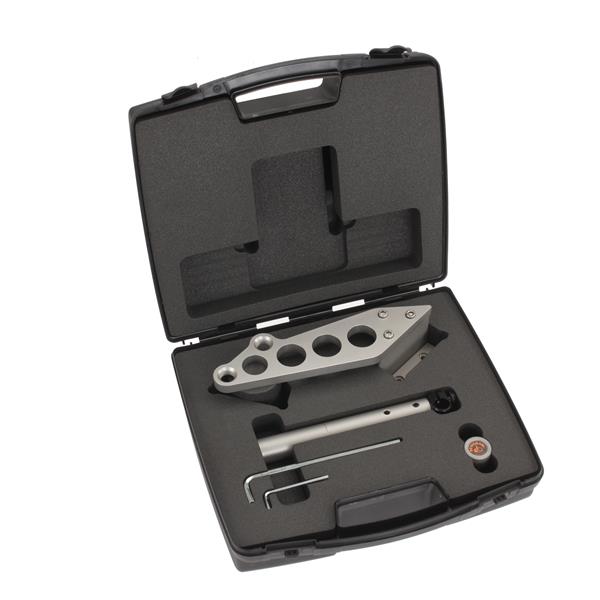

Kit contents:


Description Quantity
Lathe adaptor arm assembly 1
Spindle bar assembly 1
Cup screw (with magnetic centre cup) 1
Spherical adaptor (with magnetic centre cup) 1
5 mm long-arm hex key 1
3 mm hex key 1
User instructions 1
Plastic carrying case 1
