Product R-FSC-CC-20, 1/4-20 CMM and Equator™ system clamping component set C

1/4-20 CMM and Equator™ system clamping component set C

Product code: R-FSC-CC-20

Price: $3,318.50

All prices are ex sales tax

Stocked item

Normally dispatched within 2 working days

Processing request

This essential 1/4-20 clamping component set can be used to hold brass, titanium, aluminium, plastic, ferrous and non-ferrous parts. It is recommended for use on CMMs and Equator systems.

Replacement for old R&R part number: FSC-CC-20

Technical table

ApplicationCMM & Equator
Thread1/4-20
Clamp typeClamping
Optionswithout plate
Measurement systemImperial

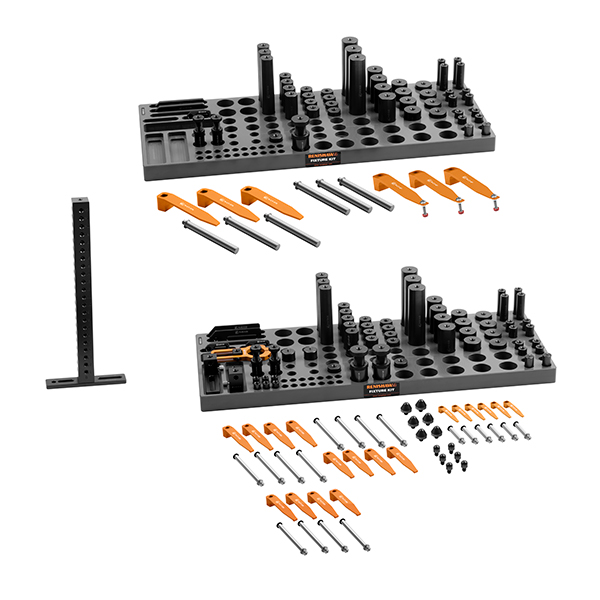

Part Number Description Quantity
R-S-37550-20 0.375 in dia. × 0.50 in standoff 6
R-S-5050-20 0.50 in dia. × 0.50 in standoff 4
R-S-5075-20 0.50 in dia. × 0.75 in standoff 8
R-S-501-20 0.50 in dia. × 1.0 in standoff 8
R-S-502-20 0.50 in dia. × 2.0 in standoff 8
R-S-7550-20 0.75 in dia. × 0.50 in standoff 4
R-S-7575-20 0.75 in dia. × 0.75 in standoff 8
R-S-751-20 0.75 in dia. × 1.0 in standoff 8
R-S-752-20 0.75 in dia. × 2.0 in standoff 8
R-S-754-20 0.75 in dia. × 4.0 in standoff 6
R-S-175-20 1.0 in dia. × 0.75 in standoff 8
R-S-11-20 1.0 in dia. ×  1.0 in standoff 8
R-S-12-20 1.0 in dia. × 2.0 in standoff 8
R-S-14-20 1.0 in dia. × 4.0 in standoff 6
R-SP-501-20 0.50 in dia. × 1.0 in pin standoff 4
R-SP-751-20 0.75 in dia. × 1.0 in pin standoff 2
R-CT-160-125-20 1.6 in tension clamp with 1.25 in post 6
R-CT-250-275-20 2.5 in tension clamp with 2.75 in post 12
R-CT-375-325-20 3.75 in tension clamp with 3.25 in post 3
R-CT-4P-325-20 4.0 in tension clamp plunger with 3.25 in post 3
R-CTB-1-20 1.0 in tension clamp bracket 1
R-RCD-20 Delrin® resting cone 6
R-RPS-20 Steel resting pin 6
R-APJ-20 Adjustable pivot joint 1
R-AJ-50-20 0.50 in dia. adjustable jackstand 4
R-AJ-1-20 1.0 in dia. adjustable jackstand 3
R-AS-1-20 1.0 in long adjustable slide 3
R-AS-3-20 3.0 in long adjustable slide 4
R-TB-751-20 Tower block with base 0.75 in² × 1.0 in 2
R-T-112-20 1.0 in² × 12.0 in tower (1 row, 4 sides) 1
R-TC-500200 20 in × 8 in × 1 in component tray 2
R-BC-10 8 in × 8 in × 2 in compartment box (not shown) 2
