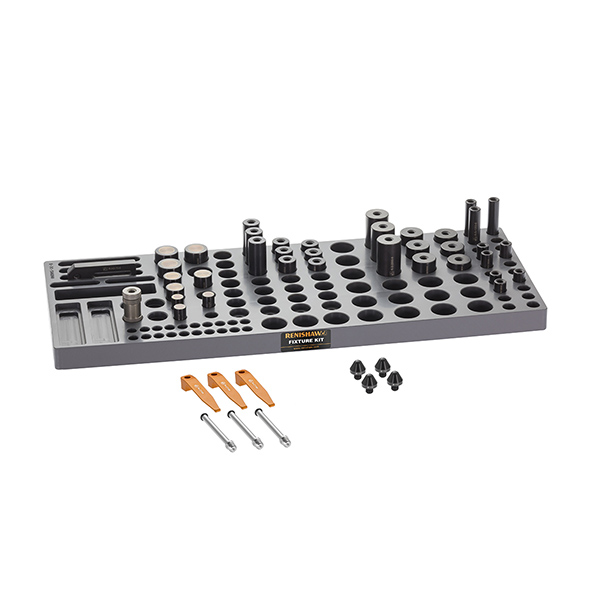

Product R-FSC-MCA-8, M8 CMM and Equator™ magnetic and clamping kit A

Product code: R-FSC-MCA-8

M8 CMM and Equator™ magnetic and clamping kit A
This essential M8 magnetic and clamping kit is particularly useful for holding ferrous workpieces, but can also be used to hold brass, titanium, aluminium, plastic and non-ferrous parts.
[0B]

M8 CMM and Equator™ magnetic and clamping kit A

This essential M8 magnetic and clamping kit is particularly useful for holding ferrous workpieces, but can also be used to hold brass, titanium, aluminium, plastic and non-ferrous parts.
[0B]

Price: $1,055.00

All prices are ex sales tax

Stocked item

Normally dispatched within 2 working days

This essential M8 magnetic and clamping kit is particularly useful for holding ferrous workpieces, but can also be used to hold brass, titanium, aluminium, plastic and non-ferrous parts. It is recommended for use on CMMs and Equator systems.

Technical table

Application	CMM & Equator
Clamp type	Magnetic and clamping
Component set	A
Measurement system	Metric
Plate option	without plate
Thread	M8

Part Number	Description	Quantity
R-M-13-8	Ø 13 mm × 25 mm magnet	3
R-M-19-8	Ø 19 mm× 25 mm magnet	3
R-M-25-8	Ø 25 mm× 25 mm magnet	3
R-S-1320-8	Ø 13 mm × 20 mm standoff	3
R-S-1325-8	Ø 13 mm × 25 mm standoff	3
R-S-1350-8	Ø 13 mm × 50 mm standoff	3
R-S-1920-8	Ø 19 mm × 20 mm standoff	3
R-S-1925-8	Ø 19 mm × 25 mm standoff	3
R-S-1950-8	Ø 19 mm × 50 mm standoff	3
R-S-2520-8	Ø 25 mm × 20 mm standoff	3
R-S-2525-8	Ø 25 mm × 25 mm standoff	3
R-S-2550-8	Ø 25 mm × 50 mm standoff	3
R-CT-64-70-8	63.5 mm tension clamp with 68 mm post and M8 thread	3
R-RCD-8	Polyoxymethylene resting cone with M8 thread	4
R-AJ-19-8	Ø 19 mm adjustable jack stand with M8 thread	1
R-AS-70-8	72 mm long adjustable slide with M8 thread	1
R-TC-500200	500 mm × 200 mm × 25 mm component tray to hold M6 and M8 components	1
R-BC10	50 mm × 200 mm × 150 mm compartment box (not shown)	1
