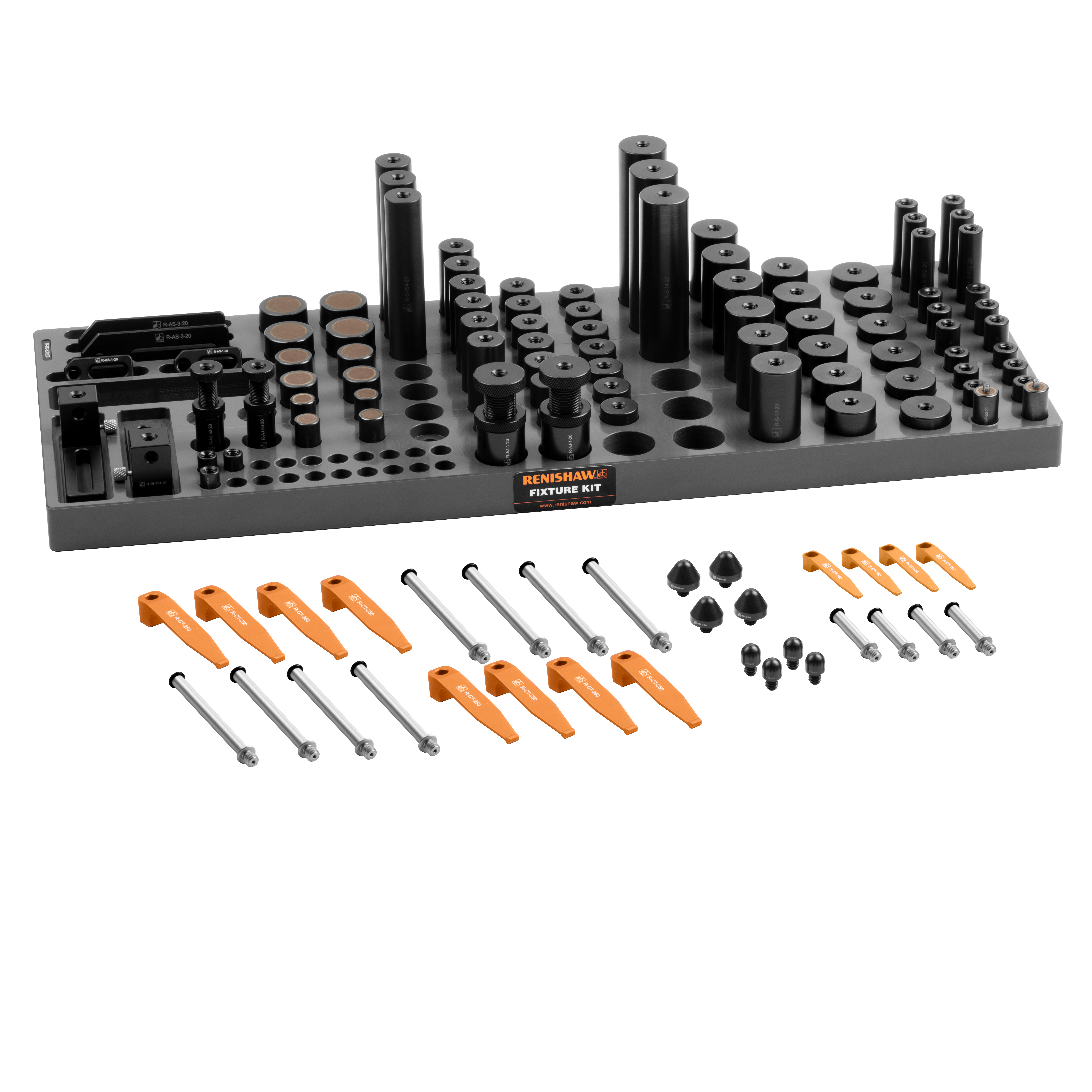

1/4-20 CMM and Equator™ system magnetic and clamping component set B

Product code: R-FSC-MCB-20

Price: $2,295.00

All prices are ex sales tax

Stocked item

Normally dispatched within 2 working days

Processing request

This essential 1/4-20 magnetic and clamping kit is particularly useful for holding ferrous workpieces, but can also be used to hold brass, titanium, aluminium, plastic and non-ferrous parts. It is recommended for use on CMMs and Equator systems.

Replacement for old R&R part number: FSC-MCB-20

Technical table

ApplicationCMM & Equator
Clamp typeMagnetic and clamping
Component setB
Measurement systemImperial
Plate optionwithout plate
Thread1/4-20
Part NumberDescriptionQuantity
R-M-50-200.50 in dia. × 1.0 in magnet4
R-M-75-200.75 in dia. × 1.0 in magnet4
R-M-1-201.0 in dia. × 1.0 in magnet4
R-MP-50-200.50 in dia. × 1.0 in pin magnet2
R-S-37550-200.375 in dia. × 0.50 in standoff3
R-S-5075-200.50 in dia. × 0.75 in standoff6
R-S-501-200.50 in dia. × 1.0 in standoff6
R-S-502-200.50 in dia. × 2.0 in standoff6
R-S-7550-200.75 in dia. × 0.50 in standoff3
R-S-7575-200.75 in dia. × 0.75 in standoff6
R-S-751-200.75 in dia. × 1.0 in standoff6
R-S-752-200.75 in dia. × 2.0 in standoff6
R-S-754-200.75 in dia. × 4.0 in standoff3
R-S-175-201.0 in dia. × 0.75 in standoff6
R-S-11-201.0 in dia. × 1.0 in standoff6
R-S-12-201.0 in dia. × 2.0 in standoff6
R-S-14-201.0 in dia. × 4.0 in standoff6
R-CT-160-125-201.6 in tension clamp with 1.25 in post4
R-CT-250-275-202.5 in tension clamp with 2.75 in post8
R-RCD-20Polyoxymethylene resting cone4
R-RPS-20Steel resting pin4
R-AJ-50-200.50 in dia. adjustable jackstand2
R-AJ-1-201.0 in dia. adjustable jackstand2
R-AS-1-201.0 in long adjustable slide2
R-AS-3-203.0 in long adjustable slide2
R-TB-751-20Tower block with base 0.75 in² × 1.0 in2
R-TC-500200500 mm × 200 mm × 25 mm component tray to hold M6 and M8 components1
R-BC-108 in × 8 in × 2 in compartment box (not shown)1
