 | PH10 motorised indexing headsMotorised indexing heads allow flexible and repeatable probe re-orientation. In May 2009 Renishaw introduced a series of design enhancements for its range of PH10 motorised heads, resulting in a 20% improvement in repeatability and increased long term stability.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2σ) to just 0.4 µm (2σ) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance. PH10M
PH10M specification
PH10MQ
PH10MQ specification
PH10T
All M8 threaded probes, such as TP20 and TP200, and extension bars fit directly onto the head. The PH10T is fully compatible with all of Renishaw's stylus and module change systems.
PH10T specification
Learn more
Installation, programming and user's guides
Useful linksNext stepsContact us online if you require more information or you have a pricing query, or alternatively you may like to speak directly to your local Renishaw office. |
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.

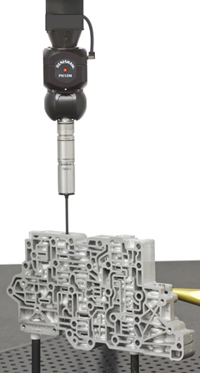

The PH10M can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.
The PH10MQ is a variant of the PH10M that allows the motorised head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill.
The PH10T is similar to the PH10M, except that it features an M8 thread probe mount in place of the autojoint.
