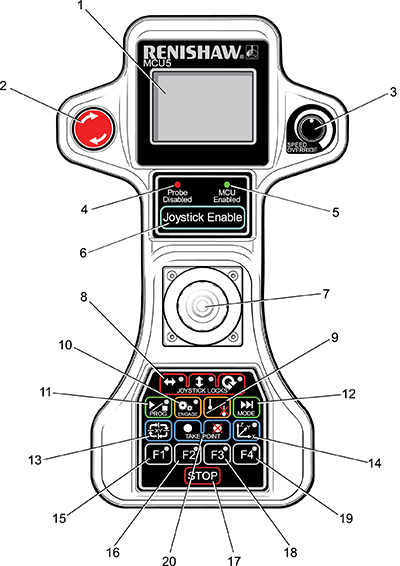

MCU5 features
Key | Decsription | Key | Description |
|---|---|---|---|
1 | LCD screen | 11 | Start / stop program |
2 | Emergency stop switch | 12 | Mode change |
3 | Speed override | 13 | Joystick orientation |
4 | Probe disabled LED (red) | 14 | Axis system select (three colours) |
5 | MCU enabled LED (green) | 15 | F1 function |
6 | Joystick enable | 16 | F2 function |
7 | 3-axis joystick with push button | 17 | Stop |
8 | Joystick locks (three separate buttons) | 18 | F3 function |
9 | Probe disable | 19 | F4 function |
10 | Servo engage (three colours) | 20 | Take point / cancel last point |
