Renishaw OMV

PC-based, on-machine component inspection and verification software for machining centres.

  • Inspect geometric features and free-form surfaces
  • Multi-axis machine support
  • On-screen simulation for program prove-out
Page contentDownloadsCall your local office Contact us online

About Renishaw OMV

Renishaw OMV allows you to check complex machined parts against the CAD model, without them being removed from the machine. It gives confidence that the part you see conforms to the CAD model from which it was made.

By verifying your part on the machine tool, you can save valuable production time - eliminating wasted time on set-up for rework.



Latest functionality

Adding to the comprehensive functionality available in previous versions, Renishaw OMV 2013 R1 SP2 introduces:

  • 'Probe and Parameters' item - allowing fast and simple programming of probe changes and the adjustment of associated parameters
  • CAD compatible export- export measurement information relating to geometric features and surfaces in a CAD compatible format for use in re-engineering applications
  • On model dimensioning in Renishaw OMV ProDimensioning - create labels to display measurements on the CAD model. This functionality now covers linear, angular and radial dimensions. (Renishaw OMV Pro only)
  • Section Groups - directly measure cross sections through a component, either through all surfaces, or through selected areas of the cut plane. (Renishaw OMV Pro only)

For further information on the new features and functionality available in the latest release, see the Renishaw OMV - on-machine component verification software: version 2013 R1 SP2 flyer. Alternatively for an overview of the full functionality provided by the software, see the Renishaw OMV on-machine 3D verification data sheet.

Easy programming

OMV software

Renishaw has also simplified the programming process; now you can work from your office PC to create probing routines direct from the CAD model, including measurement of geometric and free-form features. No direct PC connection is required to run the generated program on the machine tool; the points collected on the machine can be read back into the software using floppy disk, Ethernet, or RS232. Renishaw OMV can also be used to give immediate feedback on the object tolerance by displaying colour-coded points on the CAD model.

Powerful reporting

OMV (6)

Simple graphical reports and an on-line results display, give you an instant indication of the match of your part to the CAD model, allowing instant Go/No Go decisions.

Renishaw OMV also features comprehensive best fit and alignment functions to minimise the set-up time required when returning parts to the machine after an external process. In most cases, a rough set-up of the work co-ordinates is enough to give accurate, repeatable results.

Supported machine controllers

Renishaw OMV supports most major machine controllers through its versatile post processing system. If you are using a customised system, additional software is included to allow the output to be tailored to your needs.

For a list of supported machine controllers and part numbers of the associated post processor, please see Post processors and part numbers.

Data transfer

Renishaw OMV can transfer data between the PC and the machine tool controller via serial line, Ethernet, or by floppy disk (available transfer methods are dependant on controller compatibility). When using RS232, instant feedback during point collection indicates whether the part is within acceptable limits by displaying coloured tolerance indicators on the CAD model.

Promotion

  • Brochure: Renishaw OMV Brochure: Renishaw OMV

    Renishaw OMV, powerful PC-based verification software for machining centres H-2000-3223-01

    [407kB]
  • Flyer: Renishaw OMV - on-machine component verification software: version 2013 R1 SP2 Flyer: Renishaw OMV - on-machine component verification software: version 2013 R1 SP2

    Renishaw OMV is a powerful software solution for on-machine 3D component inspection and verification. CMM-style inspection capability allows the production of graphical and numerical inspection reports for QA purposes, and as parts are not removed from the production environment, rework can be performed quickly and simply. Version 2013 R1 SP2 provides additional functionality and a range of operational enhancements not previously available.

    [980kB]

Data sheet

Useful links

Probe benefits calculatorProbe benefits calculator

Quickly calculate and see the benefits gained from probing on machine tools using our benefits calculator.


Machine tool probe selector iconMachine tool probe selector

Quickly identify which probe would best suit your machine shop set-up or inspection needs using our machine tool probe selector.



Further reading iconFurther reading

Technical articles about machine tool products, systems and probing techniques.



The Productive Process Pyramid™ (simple)Transform your manufacturing

Get help from the process control experts and reap the rewards.

External links

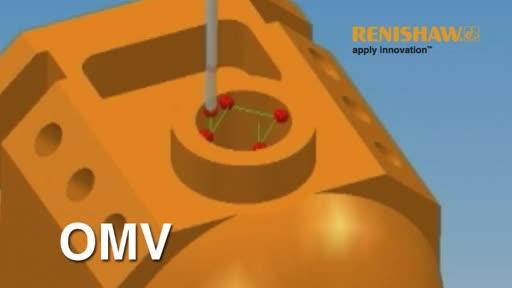

Renishaw OMV in use on an Okuma OSP200 controller.
