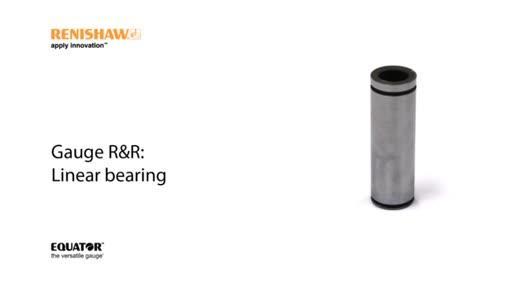

Linear bearing

Gauge R&R type 1 and type 2 tests on key control features - cylindricity and diameter of the outside surface, perpendicularity of the top face to the outside surface

Page contentDownloadsCall your local office Contact us online

 Gauge R&R study





Gauge R&R type 1

Gauge R&R type 1 tests are simple repeatability trials with one operator, one part and multiple repetitions. Results show gauge repeatability.

Test conditions gauge R&R type 1

Gauging cycle time58 sec
Repetition32



Test results gauge R&R type 1

Feature measuredCgCgk% of tolerance
Cylindricity37.5937.520.53
Diameter10.14 10.071.97
Perpendicularity 2.072.06 9.66




Gauge R&R type 2

Gauge R&R type 2 tests involve multiple operators, multiple parts and multiple repetitions. Results give an indication of real world conditions, including factors such as gauge repeatability, fixture distortion and operator  inconsistencies.

Test conditions gauge R&R type 2

Gauging cycle time58sec
Number of components7
Mastering frequency7
Number of operators3
Number of repetitions4
Total gauging operations84



Test results gauge R&R type 2

Feature measuredTolerance% of tolerance*
Cylindricity 0.10 9.26
Diameter 0.02 6.13
Perpendicularity 0.10 9.28

* R&R of measuring process (using Equator) as % of tolerance

Linear bearing R&R chart
