Trigger Logic™

Trigger Logic™ is a method that allows the user to view and select all available mode settings in order to customise a probe to suit a specific application.

Page contentDownloadsCall your local office Contact us online

OMP40-2 frontTrigger Logic™ is activated by battery insertion and uses a sequence of stylus deflection (triggering) to systematically lead the user through the available choices to allow selection of the required mode options.

Current probe settings can be reviewed by simply removing the batteries for a minimum of 5 seconds, and then replacing them to activate the Trigger Logic™ review sequence.

The movie below gives a brief insight and demonstration into reviewing and changing the settings in Trigger Logic™, and works in conjunction with the relevant Quick Start Guide or Installation Guide.

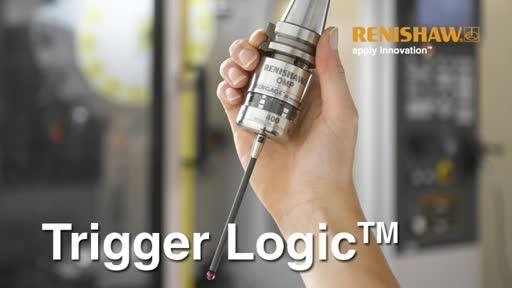

The basics of Trigger Logic

RMI partnering for radio probes

Partnering is only required during initial system set-up. Further partnering is only required if either the RMP60 or RMI are changed.

Partnering will not be lost by reconfiguration of probe settings or when changing batteries, except where multiple probe mode is selected.

Partnering can take place anywhere within the operating envelope.

The movie below demonstrates RMI partnering, and works in conjunction with the relevant Quick Start Guide or Installation Guide.

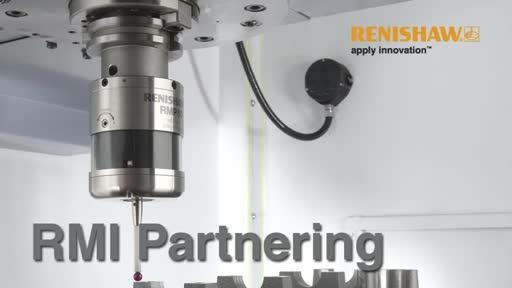

Partnering the RMI

Movies to download

  • The basics of Trigger Logic The basics of Trigger Logic

    Trigger logic animation to work in-conjunction with the Quick Start Guide or Installation Guide.

    [14.9MB]
  • Partnering the RMI Partnering the RMI

    RMI partnering animation to work in-conjunction with the Quick Start Guide or Installation Guide.

    [4.1MB]
