Standard plane mirror systems

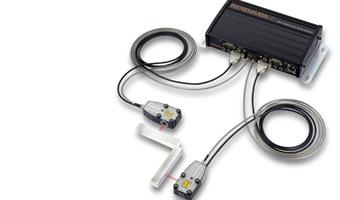

X-Y (planar) RLE systems comprise a dual axis RLU laser unit and two detector heads configured for use with plane mirror target optics.

Page contentDownloadsCall your local office Contact us online

All RLU laser units can be specified as dual axis with two fibre optic cables.

Dual axis plane mirror application

Choice of laser unit is very much dependant on operating environment, with the RLU20 being particularly suited to vacuum and controlled environment applications. RLU10 laser units are used within RLE10 systems, and RLU20 laser units in RLE20 systems.

Plane mirror systems can also be used for single axis linear measurement, which gives increased output resolution, compared to a retroreflector, but maximum axis length is reduced to 1 m.

The detector heads used in plane mirror system are also available in low power options for applications requiring a power dissipation lower than the specified < 2 W of the standard RLD.

Specifications

Data format Digital - RS422 quadrature
Analogue - 1 Vpp sine / cosine
ResolutionDigital - user selectable to 10 nm (with plane mirror target optic)
Analogue - sub-nanometre via external interpolation (e.g. RPI20 parallel interface)
Maximum velocity1 m/s (when using plane mirror target optic)
Laser typeHeNe (Helium / Neon), 632.8 nm NTP wavelength, Class II
Laser frequency stability ±50 ppb (RLU10) over any one hour period
±2 ppb (RLU20) over any one hour period
Laser lifetime >50,000 hours
Maximum axis length1 m (when using plane mirror target optic)

For non-vacuum applications some form of refractive index compensation is required to maintain accuracy under fluctuating environmental conditions. Renishaw offers the RCU10 real-time quadrature compensation system to compensate for these variances.

Resolutions to 38.6 picometres can be achieved by integrating an RPI20 parallel interface into the RLE system. This interface accepts differential analogue 1 Vpp sine / cosine signals and provides a parallel format output. See Accessories for information on the RCU10 compensation system, the RPI20 and other auxiliary equipment for use with RLE systems and the HS10 long-range laser scale.
