MIH for increased manual CMM productivity
A versatile manual indexing probe head- Repeatable indexing: 720 positions in 7.5° increments
- An integral LCD enables easy programming of probe orientation positions
- 20 probe positions can be memorised
- Compatible with most Renishaw probes (excluding all multiwire e.g. TP7M)
- Capable of carrying up to 300 mm (11.81 in) extension for deep part measurement
- Autojoint probe mount for fast repeatable probe changing

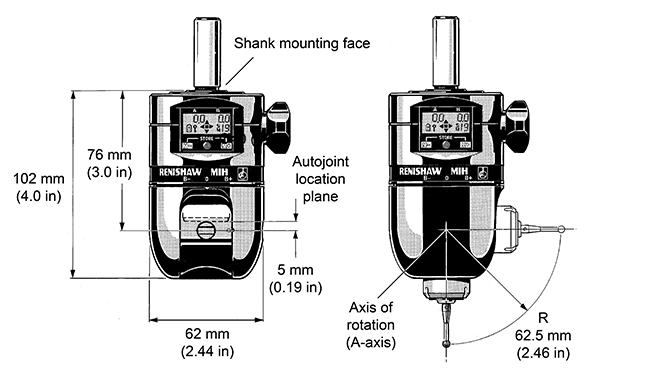

Dimensions
Specification
Head mounting | Shank to suit CMM (MS range) |
|---|---|
Probe mounting | Autojoint (i.e. there is no multiwire capacity) |
Probe status indication | LED |
Cable connection | 5-pin DIN 180° socket |
A-axis indexing | 0° to 105° in 7.5° steps = 15 positions |
B-axis indexing | ±180° in 7.5° steps = 48 positions |
Weight | 580 g (20.45 oz) |
Repeatability of position (2σ) | 1 μm (0.00004 in) when used with a TP6A and 21 mm (0.83 in) stylus |
Maximum extension bar | 300 mm (11.81 in) |
Maximum recommended torque | 0.45 Nm |
Suitable head interface | PI 200-3 or PI 7-3 |
Installation and user's guides
-
User guide: MIH
MIH user's guide
Other
-
Quick start guide: MIH
MIH quick reference guide
| Part number | |
|---|---|
| MIH manual indexing head kits | |
| MIH probe head kit, includes required shank (see below for complete part number) | A-1070-**** |
MIH probe head only | A-1070-0003 |
| MS1 | MS2 | MS3 | MS4 | MS5 | MS6 | MS7 | MS8 | MS9 | MS10 | MS11 | MS12 | MS13 | MS14 | MS15 | MS17 | D shank | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MIH | |||||||||||||||||
A-1070 | 0201 | 0202 | 0203 | 0204 | 0205 | 0206 | 0207 | 0208 | 0209 | 0210 | 0211 | 0212 | 0213 | 0214 | 0215 | 0751 | 0755 |
