System interconnection diagrams

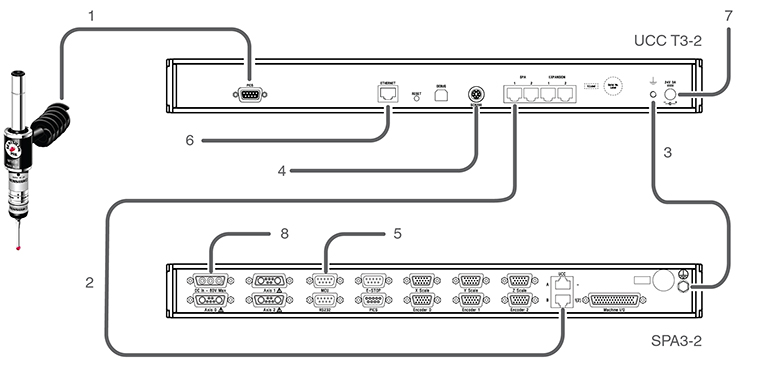

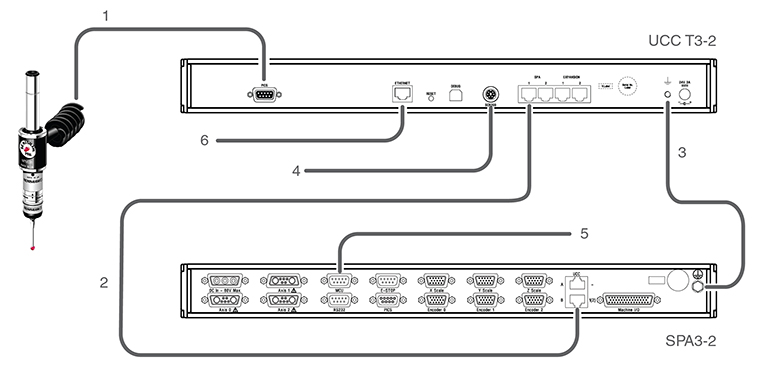

Standard two wired touch-trigger probe
Key | Description |
|---|---|
1 | Head cable(s) |
2 | Shielded CAT5E cable (supplied) |
3 | 16 / 0.2 mm earth connection |
4 | SCR200 rack connection |
5 | MCU connection |
6 | CAT5E cross-over cable to host PC |
7 | 24 V power supply (supplied) |
8 | 24 V - 80 V power supply (not supplied) |
