Connectivity
The UCC PI 80 has different configuration layouts to provide an interface to CMM systems with three, four or five machine axes, whether brushed or brushless motors.
NOTE: The UCC S3 needs to be version V.2 or newer - see label on rear panel (first shipped February 2015).

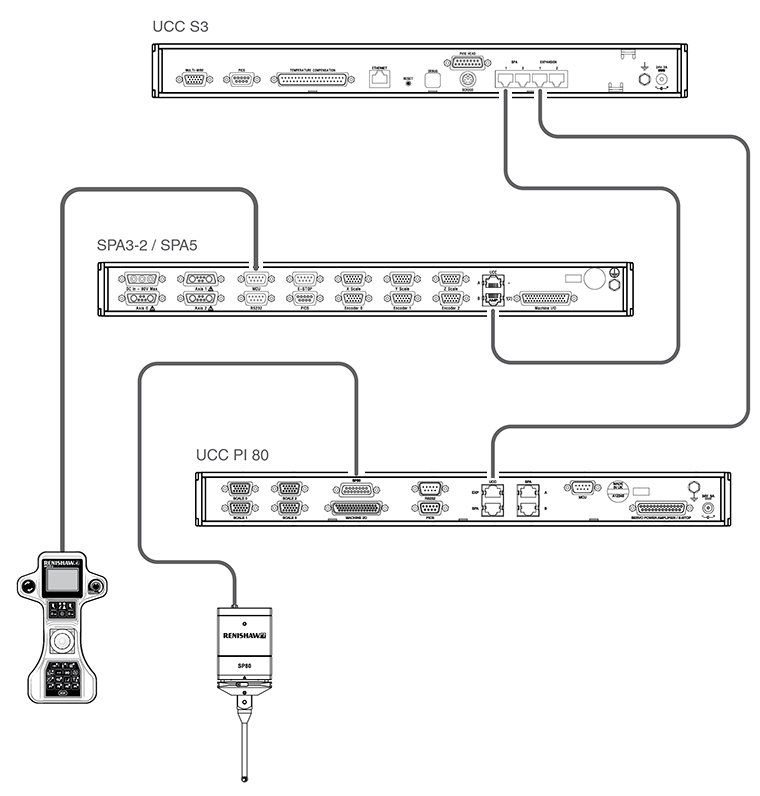

3-axis CMM with brushed motors
3- or 4-axis CMM with brushless motors
NOTE: See UCC BI installation guide (Renishaw part number H-1000-7602) for configuration instructions.

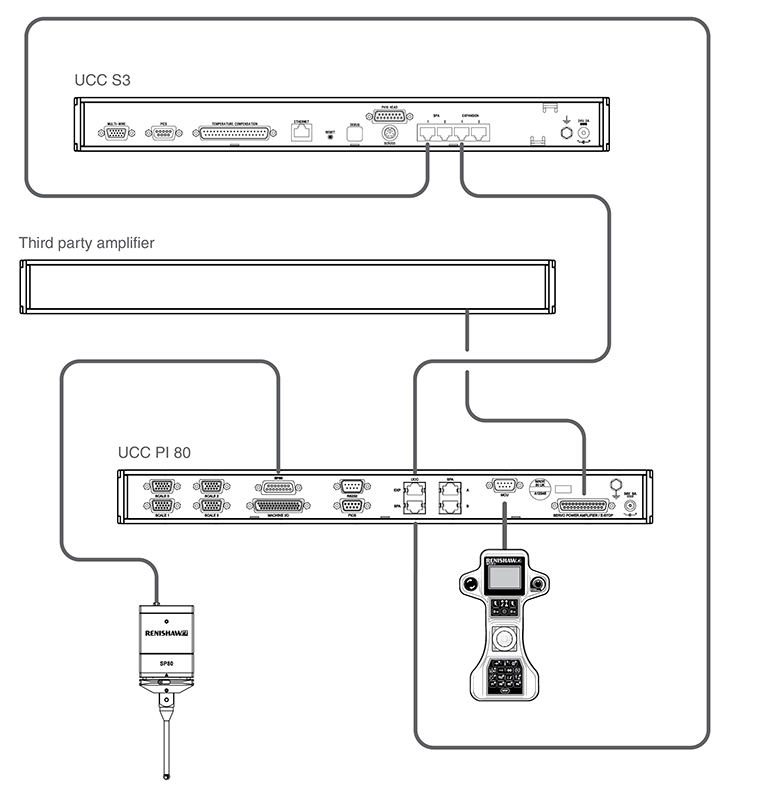

3- or 4-axis large CMM with motors requiring an analogue servo power amplifier
