UCC PI 80 universal CMM controller

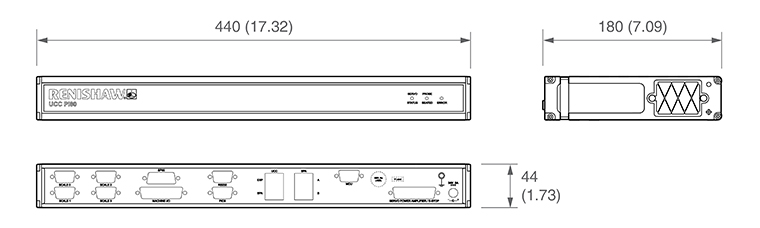

Technical specifications
Documents
Part numbers
Additional information

The UCC PI 80 is required for CMM systems which are fitted with Renishaw's SP80 scanning probe

  • UCC PI 80A Renishaw UCC S3 controller will receive signals from the SP80 through the UCC PI 80 interface
  • If the CMM system uses brushless motors, then the UCC PI 80 may be connected to a Renishaw SPA2-2 which provides power
  • Please see the UCC BI user guide (Renishaw part number H-1000-7602) for configuration instructions
  • If the CMM system uses motors which are not supported by Renishaw SPA products (e.g. above 80 V or 10 A), then the UCC PI 80 may be connected to a third party analogue amplifier to provide power
  • Please see the UCC AI user guide (Renishaw part number H-1000-7611) for configuration instructions

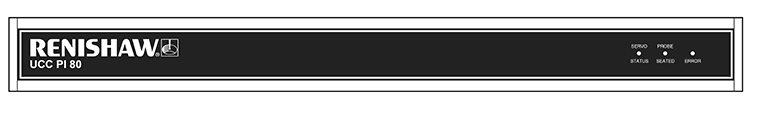

UCC PI80 - front panel

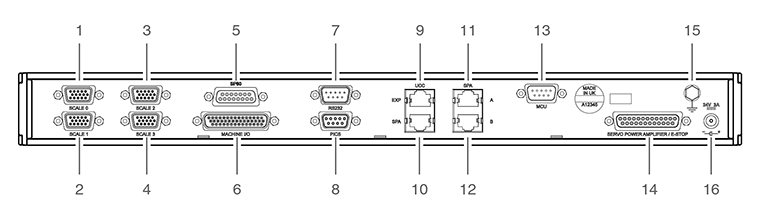

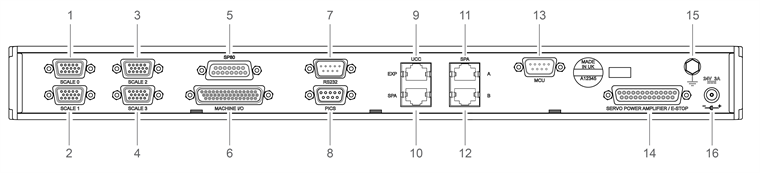

UCC PI80 rear panel - labelled

Key

Description

Key

Description

1

Scale 0 interface (15W HDD socket) *

9

UCC - EXP (RJ45 socket)

2

Scale 1 interface (15W HDD socket) *

10

UCC - SPA (RJ45 socket) *

3

Scale 2 interface (15W HDD socket) *

11

SPA - A (RJ45 socket) **

4

Scale 3 interface (15W HDD socket) *

12

SPA - B (RJ45 socket) **

5

SP80 interface (15W D socket)

13

MCU (9W D plug) *

6

Machine I/O (44W HDD socket) *

14

Servo power amplifier / E-STOP (25W D socket) *

7

RS232 (9W D plug) *

15

Earth terminal

8

PICS (9W D socket) *

16

UCC PI 80 power jack (6.3 mm socket)


* NOTE: Only to be used when interfacing to an SPA2-2 (see the UCC BI installation guide, Renishaw part number H-1000-7602) or when using a third party amplifier (see the UCC AI installation guide, Renishaw part number H-1000-7611), otherwise the SPA3 / SPA3-2 connections should be used.

** NOTE: Only to be used when interfacing to an SPA2-2 (see UCC BI installation guide, Renishaw part number H-1000-7602).

WARNING: The capability to connect the UCC PI 80 to a third party analogue amplifier requires UCCsuite v5.3 or newer.
