VM10

VM10 vision module

VM10

The VM10 vision module can be used for inspecting features or holes that are typically larger than 1 mm, with a maximum field of view of 40 mm × 50 mm.

Typical applications for the VM10 module include the inspection of thin sheet metal parts like combustor casings for aerospace engines.

VM10 stand-off

VM10 stand-off

Stand-off is described as the distance required between the bottom of the vision module and the part feature to ensure optimum metrology performance.

Both vision modules have different stand-off distances to allow the inspection of a variety of parts. The stand-off distance for the VM10 module is 80 mm.

VM10 field of view

VM10 field of view

The field of view for each vision module determines the size of feature than can be inspected using a single exposure when the RVP system is at the correct stand-off distance.

The VM10 field of view is 50 mm × 40 mm; any feature that requires inspection must be within these dimensions to be captured with a single exposure.

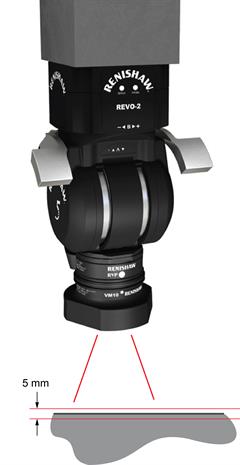

RVP module depth of field

VM10 depth of field

The depth of field is the acceptable tolerance range for the focal point of the vision system that will still provide accurate metrology performance.

If the stand-off distance means that the focal point of the vision probe is outside of the 5 mm depth of field tolerance, then a reduction in metrology performance will be apparent.

Dimensions

Dimensions in mm

VM10 dimensions

Specification

Measurement 1 mm or larger diameter holes / features
Target applicationsAero engine combustor casings
Field of view50 mm × 40 mm
Depth of field5 mm (±2.5 mm)
Illumination2 rings (8 + 16 LEDs)

Brochures and flyers

  • Flyer:  RVP vision probe for REVO-2
    Flyer: RVP vision probe for REVO-2

    REVO-2 is the only scanning system for CMMs that simultaneously controls the motion of three machine and two head axes whilst collecting work piece data using its range of 2D and 3D tactile probes, surface roughness measurement probe and now non-contact vision probe too.

Installation and user's guides

  • User guide:  REVO-2
    User guide: REVO-2

    REVO-2 is a dynamic measuring head and probe system from Renishaw. It is a revolutionary product designed to maximise measurement throughput whilst maintaining high system accuracy.

  • Installation & user's guide:  RSP3
    Installation & user's guide: RSP3

    The RSP3 range of probes gives REVO users the ability to carry cranked stylus arrangements and enhanced capability for carrying long styli.

  • Installation & user's guide:  SFP2
    Installation & user's guide: SFP2

    The SFP2 probe system brings automated surface finish (roughness) measurement to CMMs as part of the REVO 5-axis multi-sensor measuring system.

  • User guide:  RVP
    User guide: RVP

    RVP is a non-contact vision measurement probe for use with the REVO-2 5-axis measurement system on co-ordinate measuring machines.



Part number

REVO-2 5-axis scanning system kits


REVO-2 entry kit (includes 1 × REVO-2 head kit, 1 × RSP2 V2 probe, 1 × RSH250 kit, 1 × datum ball kit)

A-5518-1095

REVO-2 S5 controller kit (including 1 × UCC S5, 1 × SPA3 amp, 1 × REVO air filer assembly, 1 × REVO 6 mm air pipe, 1 × UCC T3 connector kit, 1 × MCU5-2 joystick, 1 × PSU)

A-5518-0096

REVO-2 S5 controller kit (including 1 × UCC S5, 1 × SPA3 amp, 1 × REVO air filer assembly, 1 × REVO 6 mm air pipe, 1 × UCC T3 connector kit, 1 × MCU W-2 joystick, MCU W battery pack (2 batteries), 1 × PSU)

A-5518-0098

REVO RSP2 probe


RSP2 V2 probe (probe only)

A-3060-0028

RSP2 stylus holder kits


RSH175 stylus holder kit (including 1 × RSH175, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-3060-0024

RSH250 stylus holder kit (including 1 × RSH250, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-3060-0021

RSH350 stylus holder kit (including 1 × RSH350, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-3060-0022

RSH450 stylus holder kit (including 1 × RSH450, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-3060-0026

RSH500 stylus holder kit (including 1 × RSH500, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-3060-0023

REVO RSP3 probe kits


REVO RSP3-1 probe kit (including 1 × RSP3-1 probe, 1 × RSH3-1 stylus holder, 1 × 20 mm extension and styli)

A-3060-0331

REVO RSP3-2 probe kit (including 1 × RSP3-2 probe, 1 × RSH3-2 stylus holder, 1 × 20 mm extension and styli)

A-3060-0332

REVO RSP3-3 probe kit (including 1 × RSP3-3 probe, 1 × RSH3-3 stylus holder, 1 × 20 mm extension and styli)

A-3060-0333

REVO RSP3-4 probe kit (including 1 × RSP3-4 probe, 1 × RSH3-4 stylus holder, 1 × 20 mm extension and styli)

A-3060-0334

RSP3 stylus holder kits


RSH3-1 stylus holder kit (includes 1 × stylus holder, 1 × PA25-RSH3 port adapter, 1 × stylus tools)

A-3061-2521

RSH3-2 stylus holder kit (includes 1 × stylus holder, 1 × PA25-RSH3 port adapter, 1 × stylus tools)

A-3061-2522

RSH3-3 stylus holder kit (includes 1 × stylus holder, 1 × PA25-RSH3 port adapter, 1 × stylus tools)

A-3061-2523

RSH3-4 stylus holder kit (includes 1 × stylus holder, 1 × PA25-RSH3 port adapter, 1 × stylus tools)

A-3061-2524

RSP3-6 probe


RSP3-6 probe (probe only)

A-6084-0001

RSP3-6 stylus holder kits


RSH3-6c-500 kit for cranked styli (includes 1 × stylus holder, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-6084-0015

RSH3-6c-600 kit for cranked styli (includes 1 × stylus holder, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-6084-0016

RSH3-6-600 kit (includes 1 × stylus holder, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-6084-0006

RSH3-6-700 kit (includes 1 × stylus holder, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-6084-0007

RSH3-6-800 kit (includes 1 × stylus holder, 2 × Ø6 by 10 M2 styli, 1 × stylus tools)

A-6084-0008

REVO SFP2 kits



SFP2 combi kit #1 (A1 and A2 modules, single artefact)

A-5764-0001

SFP2 combi kit #2 (single artefact, no modules)

A-5764-0002

SFP2 combi kit #3 (A1 and A2 modules, triple artefact)

A-5764-0003

SFP2 combi kit #4 (triple artefact, no modules)

A-5764-0004

Single artefact kit (SFA1 and single artefact holding kit)

A-5764-0072

Triple artefact kit (SFA1, 2, 3 and triple artefact holding kit)

A-5764-0073

Probe and modules



SFP2 surface finish probe with integral rotary C-axis


 SFM-A1 2 µm general purpose straight module (type A skid)

A-5764-0020

SFM-A1 5 µm general purpose straight module (type A skid)

A-5764-0022

SFM-A2 2 µm general purpose cranked module (type A skid)

A-5764-0021

SFM-A2 5 µm general purpose cranked module (type A skid)

A-5764-0023

SFM-B1 2 µm straight module with smaller skid for short lands (type B skid)

A-5764-0025

SFM-B1 5 µm straight module with smaller skid for short lands (type B skid)

A-5764-0050

SFM-B2 2 µm cranked module with smaller skid for short lands (type B skid)

A-5764-0026

SFM-B2 5 µm cranked module with smaller skid for short lands (type B skid)

A-5764-0024

SFM-B3 5 µm 90° module with smaller skid for pockets and grooves (type B skid)

A-5764-0027

SFM-B4 5 µm cranked module with smaller skid for reach into confined areas (type B skid)

A-5764-0034

SFM-B5 5 µm cranked module with smaller skid for reach into undercuts and grooves (type B skid)

A-5764-0029

SFM-C2 2 µm straight module for small bores (type C skid)

A-5764-0031

SFM-C2 5 µm straight module for small bores (type C skid)

A-5764-0032

SFM-D1 2 µm 90° module for extra reach (type D skid)

A-5764-0035

SFM-D1 5 µm 90° module for extra reach (type D skid)

A-5764-0036

SFM-E1 2 µm long straight module with 2-part skid (type E skid)

A-5764-0040

SFM-E1 5 µm long straight module with 2-part skid (type E skid)

A-5764-0038

SFM-E2 5 µm long straight module with 2-part skid (type E skid)

A-5764-0041

Accessories



SFH-1 surface finish module holder

A-5764-0080

SFH-2 surface finish module holder

A-5764-0081

SFA1 3.0 SIN artefact (SFA1 plate with UKAS certificate)

A-5764-0060

SFA2 0.5 SIN artefact (SFA2 plate with UKAS certificate)

A-5764-0061

SFA3 0.4 ST artefact (SFA3 plate with UKAS certificate)

A-5764-0062

OFA optical flat artefact (* Special product)

A-5764-3142

Single artefact holder mounting kit. Contains: SFAH-1 single plate holder, rack adaptor, leg adaptor, fixings for all options, tools

A-5764-0070

Triple artefact holder mounting kit. Contains: SFAH-2 triple plate holder, rack adaptor, leg adaptor, fixings for all options, tools

A-5764-0071

TFP tip find probe kit (incl TP20 LF mod, stylus, PL24 cable)

A-5764-0063

MST module setting tool

A-5764-0091

System storage box

A-5764-0090

Software



MODUS surface texture - standard

M-5639-0228

MODUS surface texture - advanced

M-5639-0227

REVO-2 RVP kits



RVP REVO-2 vision probe kit

A-5378-0080

VM10 vision module kit

A-5378-0082

VM11 vision module kit

A-5378-0087

VPCP vision probe change port kit

A-5378-0081

VMCP vision module change port kit

A-5378-0083

VA10 vision artefact kit

A-5378-0085

REVO rack kits



REVO MRS2 rack kit #1 (includes 1 × MRS2 400 mm leg kit, 1 × MRS2 400 mm rail kit, 2 × RCP2, 1 × TDA) - 400 mm of rail space

A-3060-2631

REVO MRS2 rack kit #2 (includes 1 × MRS2 400 mm leg kit, 1 × MRS2 600 mm rail kit, 2 × RCP TC-2, 2 × RCP2, 1 × RCP TC PSU unit, 1 × TDA) - 600 mm of rail space

A-3060-2632

REVO MRS2 rack kit #3 (includes 1 × MRS2 600 mm leg kit, 1 × MRS2 600 mm rail kit, 1 × MRS2 front spaced 600 mm rail kit, 2 × RCP TC-2, 2 × RCP2, 1 × RCP TC PSU unit, 1 × TDA) - 1200 mm of rail space

A-3060-2633

REVO MRS2 rack kit #4 (includes 1 × MRS2 800 mm leg kit, 1 × MRS2 600 mm rail kit, 1 × MRS2 front spaced 600 mm rail kit, 1 × MRS2 back spaced 600 mm rail kit, 2 × RCP TC-2, 2 × RCP2, 1 × RCP TC PSU unit, 1 × TDA) - 1800 mm of rail space

A-3060-2634

REVO MRS2 rack kit #5 (includes 1 × MRS2 600 mm leg kit, 1 × MRS2 1000 mm rail kit, 1 × MRS2 front spaced 1000 mm rail kit, 2 × RCP TC-2, 2 × RCP2, 1 × RCP TC PSU unit, 1 × TDA) - 2000 mm of rail space

A-3060-2635

REVO MRS2 rack kit #6 (includes 1 × MRS2 800 mm leg kit, 1 × MRS2 1000 mm rail kit, 1 × MRS2 front spaced 1000 mm rail kit, 1 × MRS2 back spaced 1000 mm rail kit, 2 × RCP TC-2, 2 × RCP2, 1 × RCP TC PSU unit, 1 × TDA) - 3000 mm of rail space

A-3060-2636

REVO rack ports and rack accessories



REVO RCP2 change port for RSP2, SFP1 and RSP3-6 stylus holders

A-3060-0090

REVO RCP TC-2 thermally controlled change port for REVO probes

A-3061-0310

REVO RCP TC PSU unit

A-3061-0302

RCP TC-3 high force storage port

A-3061-0320

REVO FCR25 flexible change rack kit for changing RSH3 stylus holders: three port unit for MRS system (includes 1 × FCR25, 3 × PA25-RSH3, 1 × REVO FCR25 adaptor kit)

A-3061-0105

TDA (tip datum artefact)

A-3060-0085

DC link cable

A-3060-0015

1.5 m dc extension cable

A-3060-0016

5 m dc extension cable

A-3060-0017

10 m dc extension cable

A-3060-0018

REVO FCR25 adaptor

A-3061-0101

REVO accessories



REVO datum ball kit (including 45 mm datum ball in wooden box with M6, M8, M10, 5/16, 3/8 mounting studs and spanner set)

A-3060-0310

REVO mechanical fuse mount (crash protection)

A-3060-0300

REVO RCP door replacement kit

A-3061-1962

PA25-RSH3 kit (includes 3 × PA25-RSH3 port inserts)

A-3061-2530

REVO air pipe 6 mm O/D × 20 m

A-3060-0082

REVO air filter set

A-3060-0070

15 m cable for use with PH20 and REVO

A-5669-0015

25 m cable for use with PH20 and REVO

A-5759-0025

30 m cable for use with REVO

A-5669-0030

REVO Y cable adaptor kit

A-3060-0045
