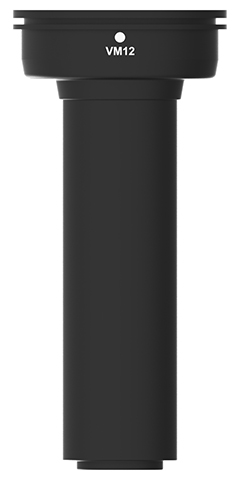

VM12 vision module

  • VM12The VM12 vision module can be used for inspecting features or holes that are typically 0.05 mm or larger, with a maximum field of view of 3.1 mm × 2.5 mm
  • Typical applications for the VM12 module include inspecting small features

Dimensions

VM12 dimensions

NOTE: Dimensions in mm (in).

Specification


Measurement
0.05 mm or larger diameter holes / features
Target applications
Inspecting small features
Field of view
3.1 mm × 2.5 mm
Depth of field
0.2 mm (±0.1 mm)
Stand-off
50 mm
Illumination1 ring (10 LEDs)

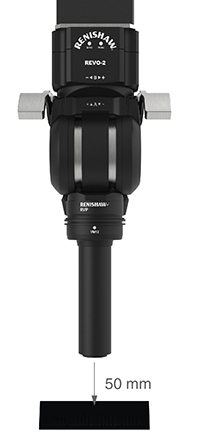

VM12 stand-off

RVP stand-off - VM12

Stand-off is described as the distance required between the bottom of the vision module and the part feature to ensure optimum metrology performance.

Vision modules have different stand-off distances to allow the inspection of a variety of parts. The stand-off distance for the VM12 module is 50 mm.

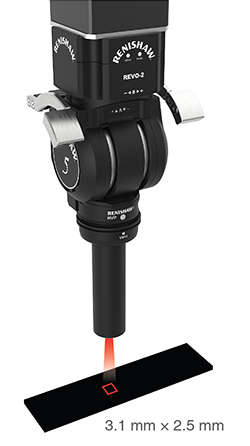

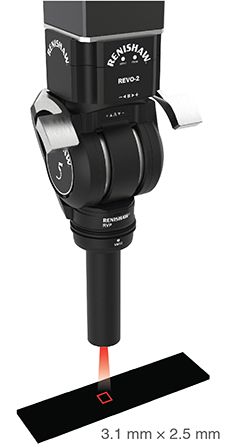

VM12 field of view

RVP field of view - VM12

The field of view for each vision module determines the size of feature than can be inspected using a single exposure when the RVP system is at the correct stand-off distance.

The VM12 field of view is 3.1 mm × 2.5 mm; any feature that requires inspection must be within these dimensions to be captured with a single exposure.

RVP module depth of field

The depth of field is the acceptable tolerance range for the focal point of the vision system that will still provide accurate metrology performance.

If the stand-off distance means that the focal point of the vision probe is outside of the 5 mm depth of field tolerance, then a reduction in metrology performance will be apparent.

RVP vision module - depth of field
VM12
A0.1 mm
B0.2 mm

Installation and user's guides

  • User guide:  RVPUser guide: RVP

Part number

REVO-2 RVP kits

RVP REVO-2 vision probe kit

A-5378-0080

VM10 vision module kit

A-5378-0082

VM11-2 vision module kit

A-5378-0093

VM12 vision module kit

A-5378-0088

ACM kit

A-5378-0094

VPCP vision probe change port kit

A-5378-0081

VMCP vision module change port kit

A-5378-0083

VA11 vision artefact kit

A-5378-0089

VA90 calibration adaptor

A-5378-0091


NOTE: Please visit the REVO-2 page for a full list of REVO-2 system and associated product part numbers.
