Connectivity

The UCC PI 80 has different configuration layouts to provide an interface to CMM systems with three, four or five machine axes, whether brushed or brushless motors.

NOTE: The UCC S3 needs to be version V.2 or newer - see label on rear panel (first shipped February 2015).

3-axis CMM with brushed motors

UCC PI80 connectivity - UCC S3_SPA3_UCC PI80_SP80_MCU_

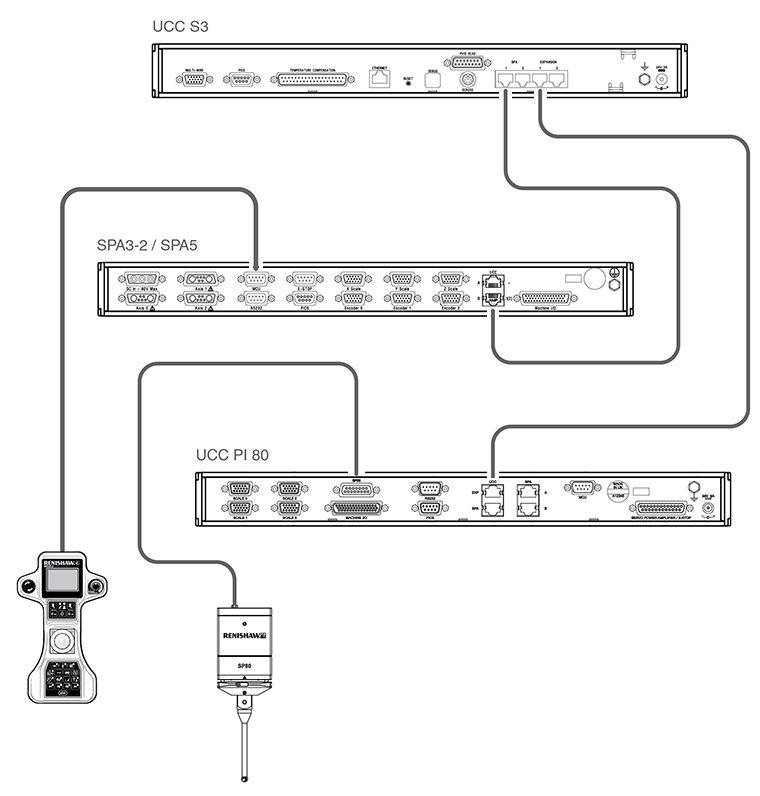

3- or 4-axis CMM with brushless motors

UCC PI80 connectivity - UCC S3_SPA2-2_UCC PI80_SP80_MCU
NOTE: See UCC BI installation guide (Renishaw part number H-1000-7602) for configuration instructions.

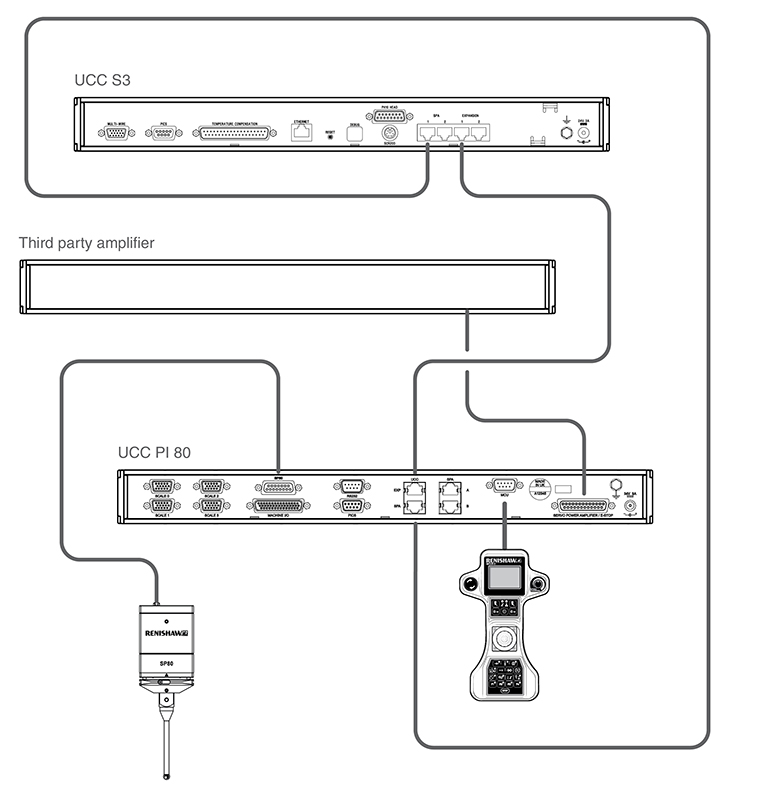

3- or 4-axis large CMM with motors requiring an analogue servo power amplifier

UCC PI80 connectivity - UCC S3_third-party amplifier_UCC PI80_SP80

3-axis CMM with DC motors

Technical drawing:  Technical drawing:  UCC PI 80 connectivity - UCC S3_SPA3_UCC PI 80_SP80_MCU_DC motors
