SCR200
SCR200 stylus changing rack
Rapid automatic changing of stylus modules without the need to requalify stylus tips- Powered by PI 200-3
- Incorporates features to facilitate safe stylus changing

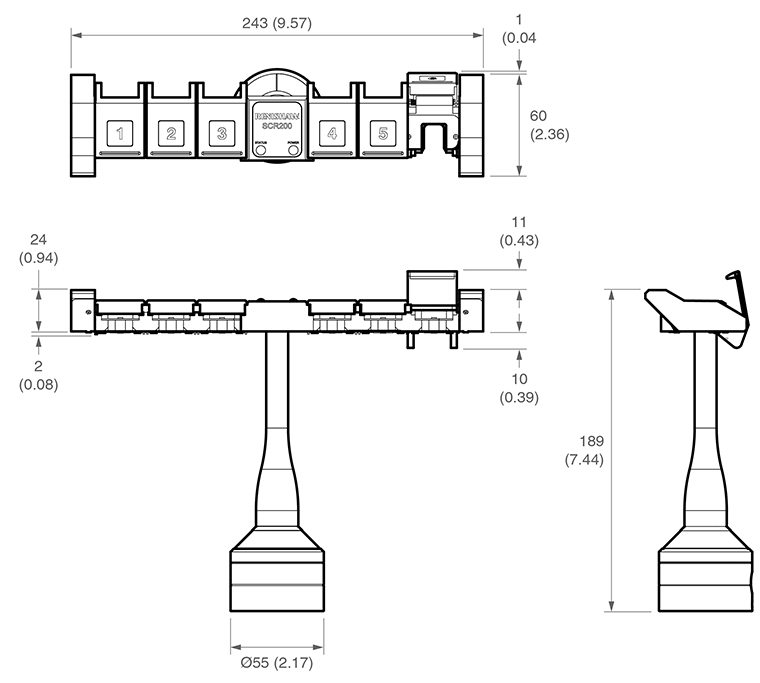

Dimensions
Specification
Weight | 0.75 kg |
|---|---|
Mounting orientation | Vertical or horizontal |
Mounting fixture | Single stud (M8, M10) |
Number of ports | 6 |
Repeatability of stylus change (2σ) at 50 mm | Automatic ≤1 μm |
Entry speed | Unrestricted |
Module pull-off force | 800 g maximum |
Overtravel protection | Electromechanical (5° minimum deflection) |
LED indicators | |
Power | Green |
Status | Red (flashing during probe inhibit) |
Change cycle detection | Optoelectronic beam system with Hall effect proximity sensor |
Multi-rack usage | Up to two SCR200 units (12 ports) may be connected with a special cable |
Installation
All alignment requirements and port docking co-ordinates can be established with only eight probing points. No control signals from the CMM are required.
Alignment adjustment | XY rotational only ±0.1 mm |
|---|---|
Docking tolerance | X ±0.17, Y ±1.5 mm, Z ± 2 mm |
Power supply / control | PI 200-3 interface |
Cable length | 20 m maximum (PI 200-3 to SCR2000) |
Cable connection | 6-pin miniature DIN socket |
Set-up time | <30 minutes |
Installation and user's guides
-
User guide: User's guide: TP200 and SCR200 probe system
-
Installation guide: PI 200
The TP200 probe system comprises the TP200 probe sensor and stylus module, the PI 200 interface and the optional SCR200 stylus change rack.
| Part number | |
|---|---|
| TP200 probe | |
| TP200 body / sensor only | A-1207-0020 |
| TP200 probe kits | |
| TP200 kit 1 (including standard force stylus module) | A-1207-0001 |
| TP200 kit 2 (including low force stylus module) | A-1207-0002 |
| TP200B probe kits | |
| TP200B kit 1 (including standard force stylus module) | A-1207-0055 |
| TP200 stylus modules | |
| TP200 standard force stylus module | A-1207-0010 |
| TP200 low force stylus module | A-1207-0011 |
| TP200 EO (extended overtravel) stylus module | A-1207-0012 |
| TP200 probe interface | |
| PI 200-3 probe interface for TP1, TP2, TP6, TP20 and TP200 | A-5707-0100 |
| PI 200-3 card for use with PHC10-3 PLUS | A-5707-0200 |
| SCR200 stylus changing rack | |
| SCR200 rack for automatic stylus changing with TP200 (rack only) | A-1207-0031 |
| SCR200 active six port change rack for use with TP200 (including 3 x standard force stylus modules) | A-1207-0030 |
| SCR200 active six port change rack for use with TP200 (including 3 x low force stylus modules) | A-1207-0070 |
| TP200 accessories | |
| 24 V PSU for PHC10-3 PLUS, PI 200-3 and PI 7-3 | P-EA02-0042 |
| M12 location piece | M-1371-0298 |
