MCR20 module changing rack
Secure storage of stylus modules for rapid automatic changing and optimum metrology- Protects mating surfaces from airborne contaminants
- Used with TP20
- Passive rack requiring no electrical input
- Magnetic field in front of each port inhibits probe during module change
- Crash protection provided by hinged overtravel of base and docking port assembly
For manual storage of modules see:
Shop online

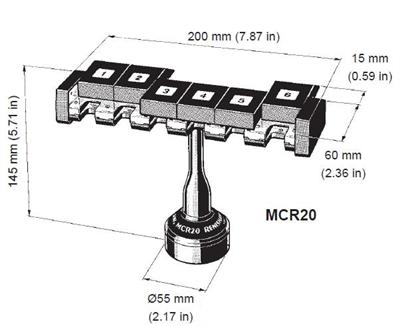

Dimensions
Dimensions: | |
|---|---|
Length | 200 mm (7.87 in) |
Width | 60 mm (2.36 in) |
Height | 145 mm (5.70 in) |
Port entry velocity | Maximum 800 mm/s |
Mounting orientation | Not designed for horizontal operation with the ports in a vertical orientation |
Y-axis overtravel | Hinged breakout from base |
Z-axis overtravel | Hinged docking port assembly 0° travel in -Z axis |
Inhibit range | 50 mm (1.97 in) from port centre |
Installation and user's guides
-
User's guide: TP20 system
Compact module changing touch-trigger probe, which allows the use of a range of stylus configurations and extensions to access features on complex parts.
Other
-
User's guide: MCR20 endcap replacement kit
MCR20 endcap replacement kit user's instruction
| Part number | |
|---|---|
| MCR20 module changing rack | |
| MCR20 rack for automatic stylus changing, to be used with TP20 (rack only) | A-1371-0163 |
| MCR20 rack kit for automatic stylus changing with TP20 (includes 2 x standard force modules) | A-1371-0261 |
| MCR20 rack kit for automatic stylus changing with TP20 (includes 1 x standard force and 1 x medium force modules) | A-1371-0262 |
| MCR20 rack kit for automatic stylus changing with TP20 (includes 1 x standard force and 1 x extended force modules) | A-1371-0263 |
| MCR20 rack kit for automatic stylus changing with TP20 (includes 2 x medium force modules) | A-1371-0264 |
| MCR20 rack kit for automatic stylus changing with TP20 (includes 1 x extended force and 1 x medium force modules) | A-1371-0265 |
| MCR20 rack kit for automatic stylus changing with TP20 (includes 2 x extended force modules) | A-1371-0266 |
| MCR20 rack kit for automatic stylus changing with TP20 (includes 1 x standard force and 1 x low force modules) | A-1371-0267 |
| MCR20 rack kit for automatic stylus changing with TP20 (includes 2 x low force modules) | A-1371-1100 |
| MCR20 rack for automatic stylus changing with TP20 (includes 1 x medium force and 1 x low force modules) | A-1371-0268 |
