Connectors and signals

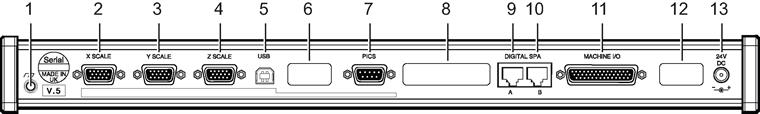

The connectors on the rear panel of the UCC MMI controller enclosure are shown below:

UCC MMI rear panel - labelled
Key

Description

Connection

1

Equipotential bonding point

-

2

X-axis scale

15-way high-density D

3

Y-axis scale

15-way high-density D

4

Z-axis scale

15-way high-density D

5

PC connection

USB

6

Not used

-

7

PICS

9-way D

8

Blank

-

9

Not used

-

10

Not used

-

11

Machine I/O

44-way high-density D

12

Not used

-

13

24 Vdc power input

-
