AM1 / AM2 adjustment modules

AM1 module

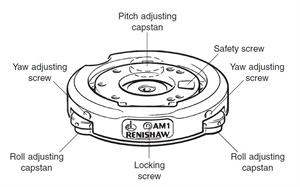

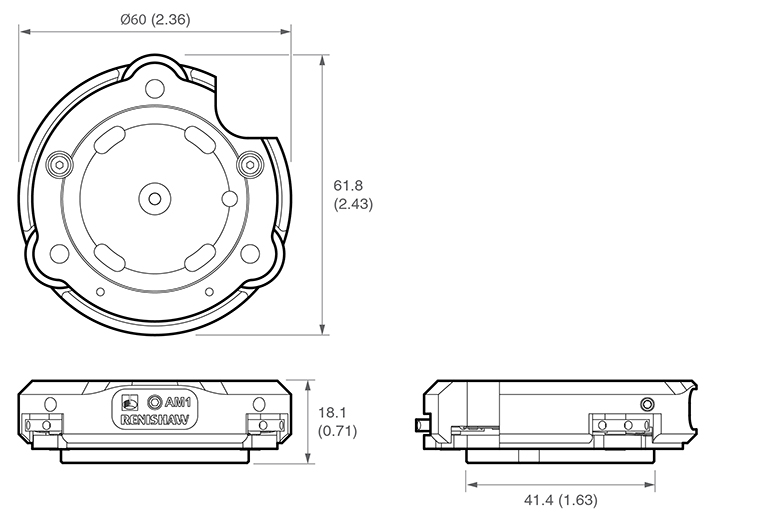

AM1 alignment module

The AM1 adjustment module has been designed for use with the PH6M and MIH manual probe heads and the PH10T PLUS / PH10M PLUS motorised probe heads.

It provides quick and accurate angular alignment of the probe heads with the CMM's axes and/or the autochange rack.

In addition, the quick release mechanism allows the head to be removed for storage and subsequently replaced without further alignment. Built in the overtravel protection decreases the risk of head damage.

ACR3 guide - figure 10

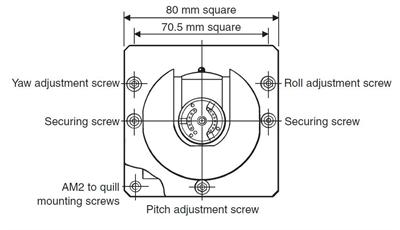

AM2 module

The AM2 adjustment module has been designed for use with the PH10MQ PLUS motorised probe head. The probe head is mounted directly onto the quill via the AM2.

M = Multiwire

Q = Quill mounted

AM2 adjustment

AM1AM2

Size

60 mm × 15.5 mm (2.36 in × 0.61 in) nominal80 mm × 10 mm (3.15 in × 0.39 in) nominal

Adjustment

±2° in pitch and roll* (recommended)
±4.5° in yaw

±1° in pitch and roll* (recommended)
±1° in yaw

Overtravel

±3.5° in pitch and roll

Mounting

Mounts to quill using shanks
Alternatively direct to quill using OEM adaptor

Mounts direct to quill

Weight

150 g (5.29 oz)48 g (1.69 oz)

* Up to ±5.5° in pitch and roll is possible but this is at the expense of overtravel.

Installation and user's guides

  • User guide:  AM1
    User guide: AM1

    The AM1 adjustment module has been designed for use with the PH6M and MIH manual probe heads and the PH10T/M PLUS motorised probe heads.

  • User guide:  Autochange system
    User guide: Autochange system

    Renishaw’s ACR1 is a fully integrated 8 port probe exchange system. Mounted within the CMM’s working envelope, the autochange system facilitates fast, automatic probe exchange without the need for re-qualification of the probe assembly.

  • Installation guide:  Autochange system
    Installation guide: Autochange system

    Renishaw's autochange equipment is the world's first integrated CMM probe exchange system. Mounted within the CMM's working envelope, the autochange system facilitates fast, automatic probe exchange without the need for re-qualification of the probe assembly.

  • Installation guide:  Autochange system
    Installation guide: Autochange system

    Installation and programmer's guide for Renishaw's autochange system


Part number

PH10M PLUS motorised indexing probe head kits

For use with multiwired probes and extension bars

PH10M PLUS probe head and shank kit (see below for complete part no.)

A-5863-11**

PH10M PLUS probe head, AM1 and shank kit (see below for complete part no.)

A-5863-19**

PH10M PLUS probe head only

A-5863-4000

PH10M PLUS probe head and AM1 kit

A-5863-1060

PH10MQ PLUS quill mounted, motorised indexing probe head kits

For use with multiwired probes and extension bars

PH10MQ PLUS probe head kit

A-5863-6000

PH10T PLUS motorised indexing probe head kits

For use with M8 threaded touch-trigger probes and extension bars

PH10T PLUS probe head and shank kit (see below for complete part no.)

A-5863-25**

PH10T PLUS probe head only

A-5863-5000

PH10M-iQ PLUS motorised indexing probe head kits with inferred qualification

For use with multiwired probes and extension bars

PH10M-iQ PLUS probe head kit

A-5863-7000

PH10 PLUS head controllers and hand control units

PHC10-3 PLUS RS232 head controller (includes 24 V PSU)

A-5863-0100

PHC10-3 PLUS head controller with integral PI 200-3 interface (includes 24 V PSU, 4 feet, documentation CD and USB driver)

A-5863-0200

PHC10-3 PLUS head controller with integral PI 200-3 interface, additional PICS output port and PL25(T) PICS cable (includes 4 feet, documentation CD and USB driver)

A-5863-0300

HCU2 hand control unit

A-5882-0010

PH10 PLUS accessories

AM1 adjustment module for PH10M PLUS, PH10T PLUS, PH6M and MIH

A-1026-0320

AM2 adjustment module for PH10MQ PLUS

A-1036-0080

PHA3 - PH10MQ PLUS to KM1 quick change adaptor

A-2238-0751

24 V PSU for PHC10-3 PLUS, PI 200-3 and PI 7-3

P-EA02-0042

1U bracket kit

A-1018-0189

1/3 x 1U bracket

A-1018-0179

PHC10-2 bracket 1U to 2U

A-1018-0173
