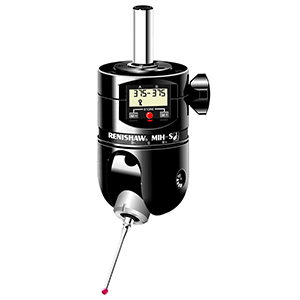

MIH-S legacy head

MIH-S

The MIH-S (manual indexable head - serial) utilises an RS232 link, via the MIH-SI interface, to provide feedback of status and lock position to the CMM computer.

This enables the CMM computer to:

  • verify that the MIH-S has been moved to the correct position and locked in place
  • identify the position which the MIH-S has been locked into

Measurement performance, functionality and dimensions are the same as for the MIH.

Specification

 Head mounting

 Shank to suit CMM (MS range)

 Probe mounting

 Autojoint (i.e. there is no multiwire capacity)

 Probe status indication

 LED

 Cable connection

 5-pin DIN 180° socket

 A-axis indexing

 0° to 105° in 7.5° steps = 15 positions

 B-axis indexing

 ±180° in 7.5° steps = 48 positions

 Weight

 580 g (20.45 oz)

 Repeatability of position (2σ)

 1 μm (0.00004 in) when used with a TP6A and 21 mm (0.83 in) stylus

 Maximum extension bar

 300 mm (11.81 in)

 Maximum recommended torque

 0.45 Nm

 Suitable head interface

PI 4-2, PI 200 or PI 7-2
