SCP600

SCP600 stylus change port

  • SCP600The SCP600 has passive operation like the SCR600 and mounts on the MRS
  • This allows flexibility for users to configure multiple ports, to suit the application
  • SCP600s are particularly suited to the SP600Q probe, where for example star stylus clusters are unable to fit into an SCR600

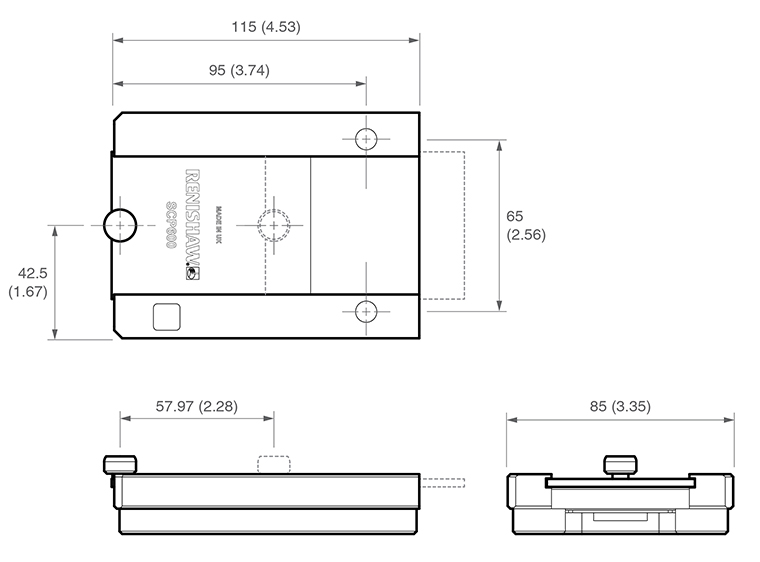

Technical specification

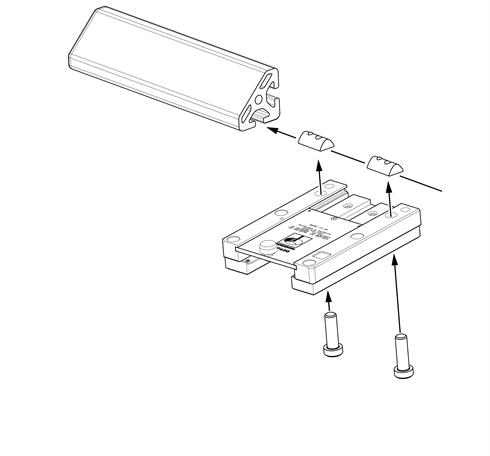

Fitting SCP600 to MRS2

The SCP600 fixes to the MRS / MRS2 rail as shown opposite:

Installation and user's guides

  • Installation and integration guide: SP600, SCR600 and AC1, AC2

    SP600M is an auto-jointed, multiwired analogue scanning probe suitable for mounting on certain motorised and fixed Renishaw probe heads. SP600Q is a quill mounted version of the SP600M analogue scanning probe. SP600 is a shank mounted version of the SP600M analogue scanning probe.

    [938kB]

Other

 Part number
SP600 kits
SP600 shank mounted scanning probe kitA-2098-0722
SP600M autojointed / multiwired scanning probe kitA-2098-0105
SP600Q quill mounted scanning probe kitA-2098-0890
SP600 stylus changing accessories
SCR600 stylus change rack for use with SP600M and SP600QA-2098-0255
SCP600 stylus change port to be mounted on MRS / MRS2 for use with SP600M and SP600QA-2098-0933
SH600-STD stylus holder for use with SP600M and SP600QA-2098-0284
SH600-EXT stylus holder for use with new SP600M and SP600Q's allows styli of up to 300 mm long to be usedA-2098-1036
SP600 interfaces and accessories
AC2 interface card for use with SP600M and SP600QA-2172-0001
PL112 PICS adaptor cableA-2172-0004
PL113 overtravel adaptor cableA-2172-0005
