System interconnection

The UCC2 provides a simple means of interconnecting many of the sub-systems (e.g. a probe head) in a measuring system. The purpose of this chapter is to illustrate some system configurations.

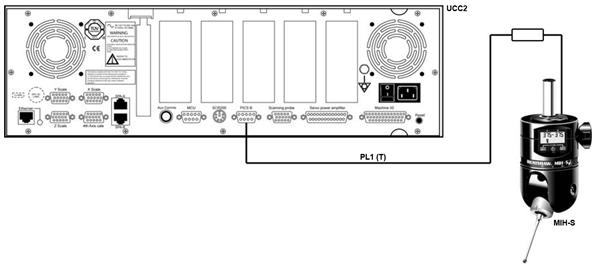

2 wire touch-trigger probe system

UCC2 instal guide - section 11.1.1

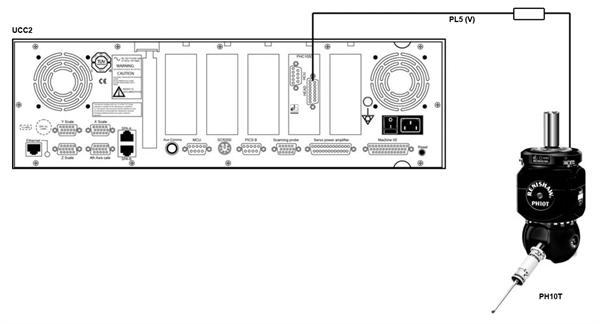

PH10 probe head and 2 wire touch-trigger probe system

UCC2 instal guide - section 11.1.2

PH10 probe head and ‘multiwire’ probe system

UCC2 instal guide - section 11.1.3

PH10 probe head, ‘multiwire’ probe system and ACR1

UCC2 instal guide - section 11.1.4

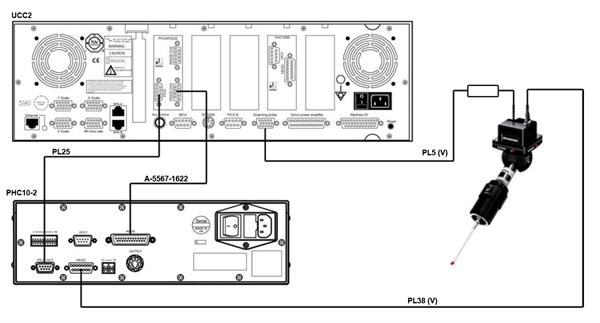

PH10 probe head and ‘multiwire’ probe system using external PHC10-2

UCC2 instal guide - section 11.1.5

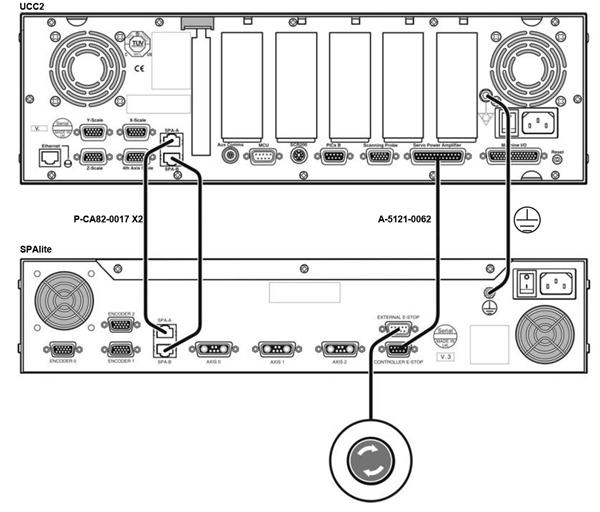

UCC2 and SPAlite

UCC2 instal guide - section 11.2.2

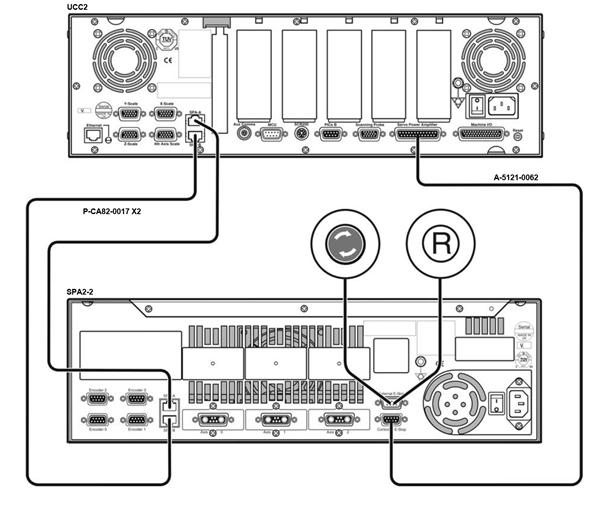

UCC2 and SPA2-2

UCC2 instal guide - section 11.2.3
